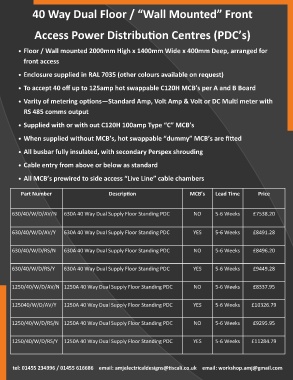

40 Way Dual Floor / “Wall Mounted” Front

Access Power Distribu3on Centres (PDC’s)

• Floor / Wall mounted 2000mm High x 1400mm Wide x 400mm Deep, arranged for

front access

• Enclosure supplied in RAL 7035 (other colours available on request)

• To accept 40 off up to 125amp hot swappable C120H MCB’s per A and B Board

• Varity of metering op3ons—Standard Amp, Volt Amp & Volt or DC Mul3 meter with
RS 485 comms output

• Supplied with or with out C120H 100amp Type “C” MCB’s

• When supplied without MCB’s, hot swappable “dummy” MCB’s are fiJed

• All busbar fully insulated, with secondary Perspex shrouding

• Cable entry from above or below as standard

• All MCB’s prewired to side access “Live Line” cable chambers

Part Number Descrip3on MCB’s Lead Time Price

630/40/W/D/AV/N 630A 40 Way Dual Supply Floor Standing PDC NO 5-6 Weeks £7538.20

630/40/W/D/AV/Y 630A 40 Way Dual Supply Floor Standing PDC YES 5-6 Weeks £8491.28

630/40/W/D/RS/N 630A 40 Way Dual Supply Floor Standing PDC NO 5-6 Weeks £8496.20

630/40/W/D/RS/Y 630A 40 Way Dual Supply Floor Standing PDC YES 5-6 Weeks £9449.28

1250/40/W/D/AV/N 1250A 40 Way Dual Supply Floor Standing PDC NO 5-6 Weeks £8337.95

125040/W/D/AV/Y 1250A 40 Way Dual Supply Floor Standing PDC YES 5-6 Weeks £10326.79

1250/40/W/D/RS/N 1250A 40 Way Dual Supply Floor Standing PDC NO 5-6 Weeks £9295.95

1250/40/W/D/RS/Y 1250A 40 Way Dual Supply Floor Standing PDC YES 5-6 Weeks £11284.79

tel: 01455 234996 / 01455 616686 email: amjelectricaldesigns@3scali.co.uk email: workshop.amj@gmail.com
