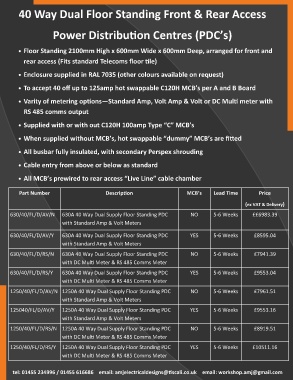

40 Way Dual Floor Standing Front & Rear Access




                       Power Distribu3on Centres (PDC’s)


         •  Floor Standing 2100mm High x 600mm Wide x 600mm Deep, arranged for front and

           rear access (Fits standard Telecoms floor 3le)

         •  Enclosure supplied in RAL 7035 (other colours available on request)

         •  To accept 40 off up to 125amp hot swappable C120H MCB’s per A and B Board


         •  Varity of metering op3ons—Standard Amp, Volt Amp & Volt or DC Mul3 meter with
           RS 485 comms output


         •  Supplied with or with out C120H 100amp Type “C” MCB’s

         •  When supplied without MCB’s, hot swappable “dummy” MCB’s are fiJed


         •  All busbar fully insulated, with secondary Perspex shrouding

         •  Cable entry from above or below as standard


         •  All MCB’s prewired to rear access “Live Line” cable chamber


         Part Number                         Descrip3on                        MCB’s      Lead Time          Price

                                                                                                       (ex VAT & Delivery)
     630/40/FL/D/AV/N      630A 40 Way Dual Supply Floor Standing PDC            NO       5-6 Weeks        ££6983.39

                           with Standard Amp & Volt Meters

     630/40/FL/D/AV/Y      630A 40 Way Dual Supply Floor Standing PDC           YES       5-6 Weeks        £8595.04
                           with Standard Amp & Volt Meters

     630/40/FL/D/RS/N      630A 40 Way Dual Supply Floor Standing PDC            NO       5-6 Weeks        £7941.39
                           with DC Mul2 Meter & RS 485 Comms Meter
     630/40/FL/D/RS/Y      630A 40 Way Dual Supply Floor Standing PDC           YES       5-6 Weeks        £9553.04

                           with DC Mul2 Meter & RS 485 Comms Meter
     1250/40/FL/D/AV/N  1250A 40 Way Dual Supply Floor Standing PDC              NO       5-6 Weeks        £7961.51

                           with Standard Amp & Volt Meters
     125040/FL/D/AV/Y      1250A 40 Way Dual Supply Floor Standing PDC          YES       5-6 Weeks        £9553.16
                           with Standard Amp & Volt Meters

     1250/40/FL/D/RS/N  1250A 40 Way Dual Supply Floor Standing PDC              NO       5-6 Weeks        £8919.51
                           with DC Mul2 Meter & RS 485 Comms Meter

     1250/40/FL/D/RS/Y  1250A 40 Way Dual Supply Floor Standing PDC             YES       5-6 Weeks        £10511.16
                           with DC Mul2 Meter & RS 485 Comms Meter
