P. 2

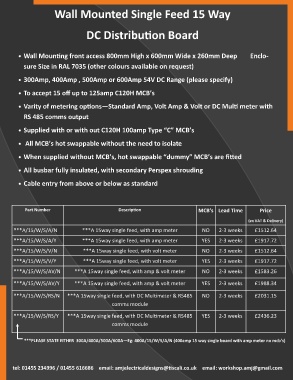

Wall Mounted Single Feed 15 Way

DC Distribu3on Board

• Wall Moun3ng front access 800mm High x 600mm Wide x 260mm Deep Enclo-
sure Size in RAL 7035 (other colours available on request)

• 300Amp, 400Amp , 500Amp or 600Amp 54V DC Range (please specify)

• To accept 15 oﬀ up to 125amp C120H MCB’s

• Varity of metering op3ons—Standard Amp, Volt Amp & Volt or DC Mul3 meter with

RS 485 comms output

• Supplied with or with out C120H 100amp Type “C” MCB’s

• All MCB’s hot swappable without the need to isolate

• When supplied without MCB’s, hot swappable “dummy” MCB’s are ﬁJed

• All busbar fully insulated, with secondary Perspex shrouding

• Cable entry from above or below as standard

Part Number Descrip3on MCB’s Lead Time Price

(ex VAT & Delivery)
***A/15/W/S/A/N ***A 15way single feed, with amp meter NO 2-3 weeks £1512.64

***A/15/W/S/A/Y ***A 15way single feed, with amp meter YES 2-3 weeks £1917.72

***A/15/W/S/V/N ***A 15way single feed, with volt meter NO 2-3 weeks £1512.64
***A/15/W/S/V/Y ***A 15way single feed, with volt meter YES 2-3 weeks £1917.72

***A/15/W/S/AV/N ***A 15way single feed, with amp & volt meter NO 2-3 weeks £1583.26

***A/15/W/S/AV/Y ***A 15way single feed, with amp & volt meter YES 2-3 weeks £1988.34

***A/15/W/S/RS/N ***A 15way single feed, with DC Mul2meter & RS485 NO 2-3 weeks £2031.15

comms module

***A/15/W/S/RS/Y ***A 15way single feed, with DC Mul2meter & RS485 YES 2-3 weeks £2436.23
comms module

***PLEASE STATE EITHER 300A/400A/500A/600A—Eg: 400A/15/W/S/A/N (400amp 15 way single board with amp meter no mcb’s)
