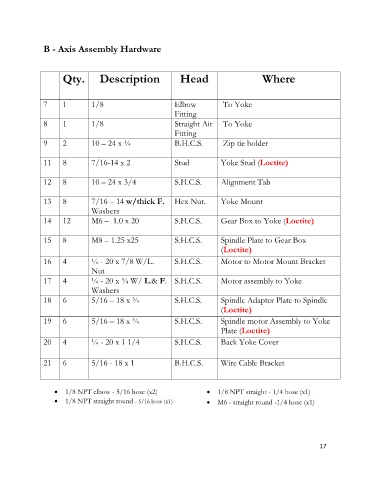

B - Axis Assembly Hardware

Qty. Description Head Where

7 1 1/8 Elbow To Yoke
Fitting
8 1 1/8 Straight Air To Yoke
Fitting

9 2 10 – 24 x ¼ B.H.C.S. Zip tie holder

11 8 7/16-14 x 2 Stud Yoke Stud (Loctite)

12 8 10 – 24 x 3/4 S.H.C.S. Alignment Tab

13 8 7/16 – 14 w/thick F. Hex Nut. Yoke Mount
Washers
14 12 M6 – 1.0 x 20 S.H.C.S. Gear Box to Yoke (Loctite)

15 8 M8 – 1.25 x25 S.H.C.S. Spindle Plate to Gear Box
(Loctite)

16 4 ¼ - 20 x 7/8 W/L. S.H.C.S. Motor to Motor Mount Bracket
Nut
17 4 ¼ - 20 x ¾ W/ L.& F. S.H.C.S. Motor assembly to Yoke
Washers
18 6 5/16 – 18 x ¾ S.H.C.S. Spindle Adapter Plate to Spindle
(Loctite)
19 6 5/16 – 18 x ¾ S.H.C.S. Spindle motor Assembly to Yoke
Plate (Loctite)

20 4 ¼ - 20 x 1 1/4 S.H.C.S. Back Yoke Cover

21 6 5/16 - 18 x 1 B.H.C.S. Wire Cable Bracket

• 1/8 NPT elbow - 5/16 hose (x2) • 1/8 NPT straight - 1/4 hose (x1)
• 1/8 NPT straight round - 5/16 hose (x1) • M6 - straight round -1/4 hose (x1)

17
