B - Axis Assembly

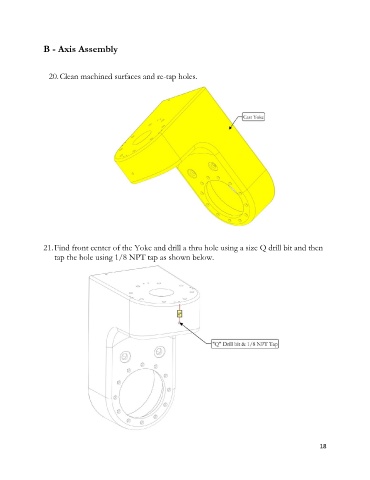

20. Clean machined surfaces and re-tap holes.
21. Find front center of the Yoke and drill a thru hole using a size Q drill bit and then
tap the hole using 1/8 NPT tap as shown below.
