P. 21

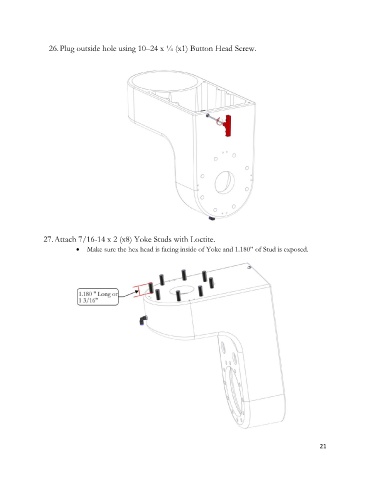

26. Plug outside hole using 10–24 x ¼ (x1) Button Head Screw.
27. Attach 7/16-14 x 2 (x8) Yoke Studs with Loctite.
• Make sure the hex head is facing inside of Yoke and 1.180” of Stud is exposed.
21
