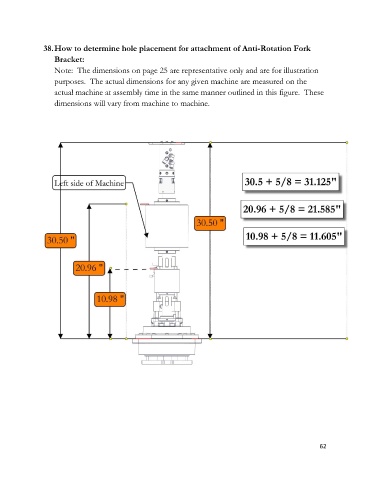

38. How to determine hole placement for attachment of Anti-Rotation Fork
Bracket:

Note: The dimensions on page 25 are representative only and are for illustration
purposes. The actual dimensions for any given machine are measured on the
actual machine at assembly time in the same manner outlined in this figure. These
dimensions will vary from machine to machine.
