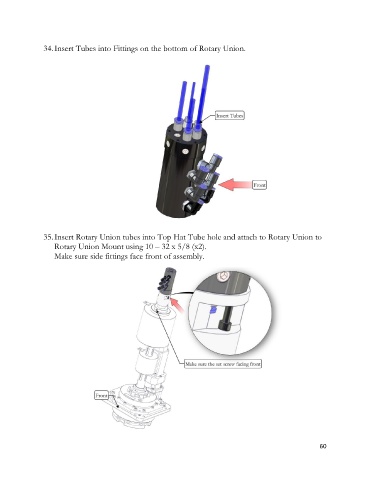

34. Insert Tubes into Fittings on the bottom of Rotary Union.
35. Insert Rotary Union tubes into Top Hat Tube hole and attach to Rotary Union to
Rotary Union Mount using 10 – 32 x 5/8 (x2).
Make sure side fittings face front of assembly.
