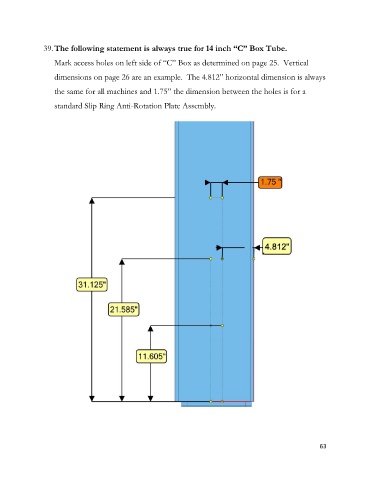

39. The following statement is always true for 14 inch “C” Box Tube.
Mark access holes on left side of “C” Box as determined on page 25. Vertical
dimensions on page 26 are an example. The 4.812” horizontal dimension is always
the same for all machines and 1.75” the dimension between the holes is for a
standard Slip Ring Anti-Rotation Plate Assembly.
