P. 72

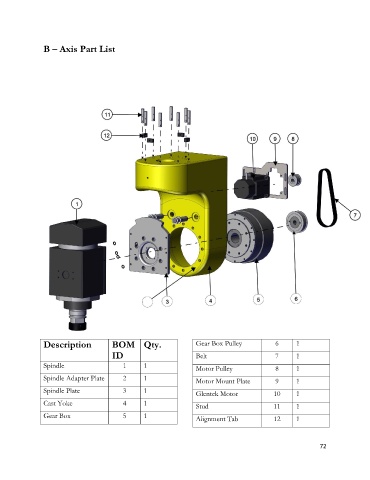

B – Axis Part List
Description BOM Qty. Gear Box Pulley 6 1
ID Belt 7 1
Spindle 1 1 Motor Pulley 8 1
Spindle Adapter Plate 2 1 Motor Mount Plate 9 1
Spindle Plate 3 1 Glentek Motor 10 1
Cast Yoke 4 1 Stud 11 1
Gear Box 5 1 Alignment Tab 12 1
72
