Page 75 - 16 HP Cast Head_Neat
P. 75

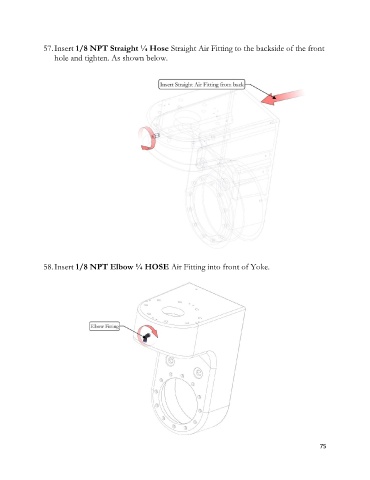

57. Insert 1/8 NPT Straight ¼ Hose Straight Air Fitting to the backside of the front
hole and tighten. As shown below.
58. Insert 1/8 NPT Elbow ¼ HOSE Air Fitting into front of Yoke.
75
