Page 73 - 16 HP Cast Head_Neat
P. 73

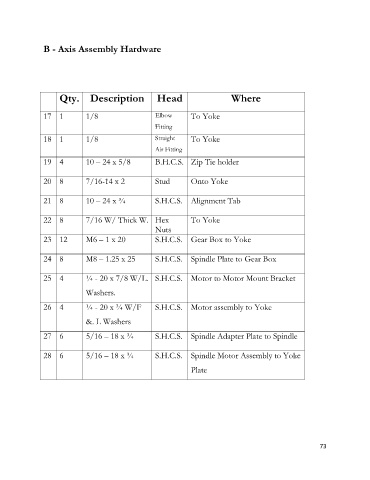

B - Axis Assembly Hardware
Qty. Description Head Where
17 1 1/8 Elbow To Yoke
Fitting
18 1 1/8 Straight To Yoke
Air Fitting
19 4 10 – 24 x 5/8 B.H.C.S. Zip Tie holder
20 8 7/16-14 x 2 Stud Onto Yoke
21 8 10 – 24 x ¾ S.H.C.S. Alignment Tab
22 8 7/16 W/ Thick W. Hex To Yoke
Nuts
23 12 M6 – 1 x 20 S.H.C.S. Gear Box to Yoke
24 8 M8 – 1.25 x 25 S.H.C.S. Spindle Plate to Gear Box
25 4 ¼ - 20 x 7/8 W/L. S.H.C.S. Motor to Motor Mount Bracket
Washers.
26 4 ¼ - 20 x ¾ W/F S.H.C.S. Motor assembly to Yoke
&. L Washers
27 6 5/16 – 18 x ¾ S.H.C.S. Spindle Adapter Plate to Spindle
28 6 5/16 – 18 x ¾ S.H.C.S. Spindle Motor Assembly to Yoke
Plate
73
