P. 78

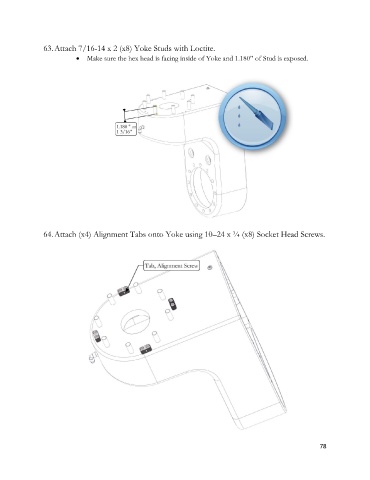

63. Attach 7/16-14 x 2 (x8) Yoke Studs with Loctite.
• Make sure the hex head is facing inside of Yoke and 1.180” of Stud is exposed.
64. Attach (x4) Alignment Tabs onto Yoke using 10–24 x ¾ (x8) Socket Head Screws.
