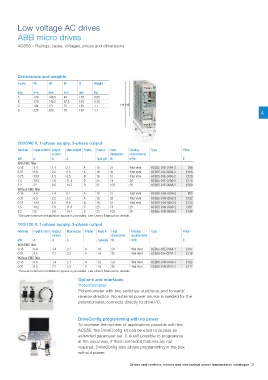

Low voltage AC drives

ABB micro drives

ACS55 – Ratings, types, voltages, prices and dimensions

Dimensions and weights
Frame H1 H2 W D Weight

size mm mm mm mm Kg
A 170 146.5 45 128 0.65
B 170 146.5 67.5 128 0.70
C 194 171 70 159 1.1 H1 H2
D 226 203 70 159 1.1
4

D
W
200/240 V, 1-phase supply, 3-phase output
Nominal Input current Output Max output Frame Fuse A Heat Cooling Type Price
current dissipation requirements
kW A A A Type gG W m /h £
3
With EMC filter
0.18 4.4 1.4 2.1 A 10 21 + Nat Vent ACS55-01E-01A4-2 £98
0.37 6.9 2.2 3.3 A 16 32 + Nat Vent ACS55-01E-02A2-2 £108
0.75 10.8 4.3 6.5 B 16 51 + Nat Vent ACS55-01E-04A3-2 £129
1.5 18.2 7.6 11.4 D 25 74 26 ACS55-01E-07A6-2 £179
2.2 22 9.8 14.7 D 32 103 26 ACS55-01E-09A8-2 £209
Without EMC filter
0.18 4.4 1.4 2.1 A 10 21 + Nat Vent ACS55-01N-01A4-2 £93
0.37 6.9 2.2 3.3 A 16 32 + Nat Vent ACS55-01N-02A2-2 £102
0.75 10.8 4.3 6.5 B 16 51 + Nat Vent ACS55-01N-04A3-2 £120
1.5 18.2 7.6 11.4 C 25 74 26 ACS55-01N-07A6-2 £167
2.2 22 9.8 14.7 C 32 103 26 ACS55-01N-09A8-2 £196
+ Ensure minimum installation space is provided, see User’s Manual for details

100/120 V, 1-phase supply, 3-phase output
Nominal Input current Output Max output Frame Fuse A Heat Cooling Type Price
current dissipation requirements
kW A A A Type gG W m /h £
3
With EMC filter
0.18 6.4 1.4 2.1 A 10 24 + Nat Vent ACS55-01E-01A4-1 £107
0.37 9.5 2.2 3.3 A 16 35 + Nat Vent ACS55-01E-02A2-1 £119
Without EMC filter
0.18 6.4 1.4 2.1 A 10 24 + Nat Vent ACS55-01N-01A4-1 £103
0.37 9.5 2.2 3.3 A 16 35 + Nat Vent ACS55-01N-02A2-1 £112
+ Ensure minimum installation space is provided, see User’s Manual for details

Options and interfaces
Potentiometer
Potentiometer with two switches: start/stop and forward/
reverse direction. No external power source is needed for the
potentiometer, connects directly to drive I/O.

DriveConfig programming with no power
To increase the number of applications possible with the
ACS55, the DriveConfig kit can be used to access an
extended parameter set. It is still possible to programme
in the usual way, if these extended features are not
required. DriveConfig also allows programming in the box
without power.
