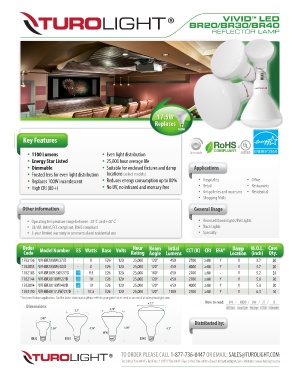

Page 25 - February 2018-Turolight

VIVID LED
™
BR20/BR30/BR40
REFLECTOR LAMP

17.5W
Replaces
100W
Key Features

• 1100 Lumens • Even light distribution
• Energy Star Listed • 25,000 hour average life
• Dimmable • Suitable for enclosed xtures and damp Applications
• Frosted lens for even light distribution locations (select models)
• Replaces 100W incandescent • Reduces energy consumption up to 80% • Hospitality • Oce
• High CRI (80+) • No UV, no infrared and mercury free • Retail • Restaurants
• Art galleries and museums • Residential
• Shopping Malls
Other information General Usage

• Operating temperature range between -20˚C and +40˚C • Recessed Down Lights/Pot Lights
• UL/cUL listed, FCC compliant, RoHS compliant • Track Lights
• 3-year limited warranty in commercial and residential use • Specialty

Order Model Number ES Watts Base Volts Hour Beam Intial CCT (K) CRI EFA* Damp M.O.L. Case
Code Rating Angle Lumens Location (inch) Qty.
1762136 VIV-BR20/8W/27/D - 8 E26 120 25,000 120° 450 2700 ≥80 Y Y 3.7 20
1762813 VIV-BR20/8W/40/D - 8 E26 120 25,000 120° 450 4000 ≥80 Y Y 3.7 20
1762183 VIV-BR30/9.5W/27/D - 9.5 E26 120 25,000 100° 650 2700 ≥80 - Y 5.2 24
1762144 VIV-BR30/10W/27/D 10 10 E26 120 25,000 120° 650 2700 ≥80 Y Y 5.0 20
1762814 VIV-BR30/10W/40/D 10 10 E26 120 25,000 120° 650 4000 ≥80 Y Y 5.0 20
1763110 VIV-BR40/17.5W/27/D - 17.5 E26 120 25,000 120° 1100 2700 ≥80 Y Y 6.3 10
* Enclosed xture application. For the latest stock status please refer to your price list or send us an email at sales@turolight.com
4.72” How to read: VIV - BR20 / 8W / 27 / D
Dimensions LED Class Lamp Type Wattage CCT(K) Dimmable
3.7” 3.76”
2.48”
Distributed by:
3.66” 4.96” 5.19” 6.3”
NEW
BR20 BR30 BR40
