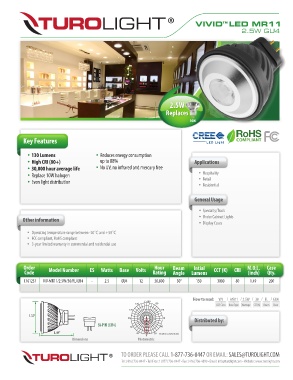

Page 29 - February 2018-Turolight
P. 29
VIVID LED MR11
™
2.5W GU4
2.5W
Replaces
10W
Key Features
• 130 Lumens • Reduces energy consumption
• High CRI (80+) up to 88% Applications
• 30,000 hour average life • No UV, no infrared and mercury free
• Replace 10W halogen • Hospitality
• Retail
• Even light distribution
• Residential
General Usage
• Specialty/Track
• Under Cabinet Lights
Other information
• Display Cases
• Operating temperature range between -20˚C and +50˚C
• FCC compliant, RoHS compliant
• 3-year limited warranty in commercial and residential use
Order Model Number ES Watts Base Volts Hour Beam Intial CCT (K) CRI M.O.L. Case
Code Rating Angle Lumens (inch) Qty.
1761237 VIV-MR11/2.5W/30/FL/GU4 - 2.5 GU4 12 30,000 30° 130 3000 80 1.49 200
How to read: VIV / MR11 / 2.5W / 30 / FL / GU4
-/+180
-150 150
LED Class Base Type Wattage CCT(K) Beam Base
-120 120
1.37”
-90 0 90
40 Distributed by:
Bi-PIN (GU4) 80
-60 120 60
160
1.49” -30 200 30 VIV-MR11/2.5W/30/FL/GU4
0
Dimensions Photometric
