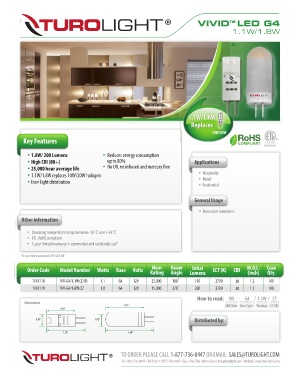

Page 28 - February 2018-Turolight

VIVID LED G4
™
1.1W/1.8W

1.1W/1.8W
Replaces

10W/20W
Key Features

• 1.8W/ 200 Lumens • Reduces energy consumption
• High CRI (80+) up to 80% Applications
• 25,000 hour average life • No UV, no infrared and mercury free
• 1.1W/1.8W replaces 10W/20W halogen • Hospitality
• Retail
• Even light distribution
• Residential

General Usage

• Decorative luminaires
Other information

• Operating temperature range between -20˚C and +50˚C
• ETL, RoHS compliant
• 3-year limited warranty in commercial and residential use*

*2-year limited warranty for VIV-G4/1.8W

Hour
Intial
Order Code Model Number Watts Base Volts Rating Beam Lumens CCT (K) CRI M.O.L. Case
Qty.
Angle
(inch)
1761118 VIV-G4/1.1W/27/D 1.1 G4 12V 25,000 180 110 2700 80 1.2 100
1761119 VIV-G4/1.8W/27 1.8 G4 12V 15,000 270 200 2700 80 1.5 100
How to read: VIV - G4 / 1.1W / 27
Dimensions
1.18” LED Class Base Type Wattage CCT(K)
0.94”
Distributed by:
0.39” 0.55”

1.18” 1.49”
