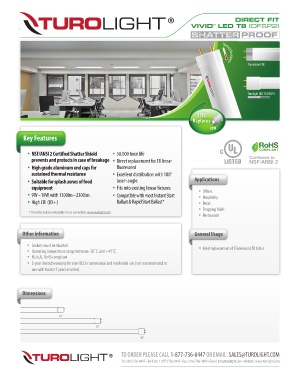

Page 38 - February 2018-Turolight
P. 38
DIRECT FIT
VIVID LED T8 (DFSP2)
™
PROOF
Fluorescent T8
Thermal Resistance
Turolight LED T8 DFSP4
PROOF
15W
Replaces
32W
Key Features
• NSF/ANSI 2 Certied Shatter Shield • 50,000 hour life
prevents and protects in case of breakage • Direct replacement for T8 linear Conforms to
NSF/ANSI 2
• High grade aluminum end caps for uorescent
sustained thermal resistance • Excellent distribution with 180°
• Suitable for splash zones of food beam angle Applications
equipment • Fits into existing linear xtures • Oces
• 9W~19W with 1100lm~2300lm • Compatible with most Instant Start • Hospitality
• High CRI (83+) Ballast & Rapid Start Ballast* • Retail
• Shopping Malls
* Check the ballast compatible list on our website www.turolight.com
• Restaurants
Other information General Usage
• Sockets must be shunted • Ideal replacement of Fluorescent T8 tubes
• Operating temperature range between -20˚C and +45˚C
• UL/cUL, RoHS compliant
• 3-year limited warranty for non-DLC in commercial and residential use (not recommended to
use with ballast 7 years or older)
Dimensions
24”
36”
48”
