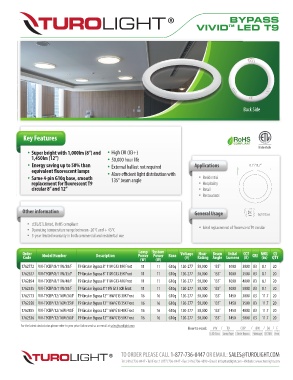

Page 43 - February 2018-Turolight
P. 43
BYPASS
VIVID LED T9
™
Back Side
Key Features
• Super bright with 1,000lm (8”) and • High CRI (83+)
1,450lm (12”) • 50,000 hour life
• Energy saving up to 50% than • External ballast not required Applications 8.1”/11.7”
equivalent uorescent lamps • More ecient light distribution with
• Same 4-pin G10q base, smooth 135° beam angle • Residential
replacement for uorescent T9 • Hospitality
circular 8” and 12” • Retail
• Restaurants
Other information General Usage Gq10 Base
• cETL/ETL listed, RoHS compliant
• Operating temperature range between -20°C and + 45°C • Ideal replacement of uorescent T9 circular
• 3-year limited warranty in both commercial and residential use
Lamp System
Order Model Number Description Power Power Base Voltage Hour Beam Intial CCT CRI MOL CS
Code (W) (W) (V) Rating Angle Lumens (K) (in) QTY
1762772 VIV-T9CBP/8/11W/30/F T9 Circular Bypass 8" 11W G13 30K Frost 11 11 G10q 120-277 50,000 135˚ 1000 3000 83 8.1 20
1762357 VIV-T9CBP/8/11W/35/F T9 Circular Bypass 8" 11W G13 35K Frost 11 11 G10q 120-277 50,000 135˚ 1000 3500 83 8.1 20
1762854 VIV-T9CBP/8/11W/40/F T9 Circular Bypass 8" 11W G13 40K Frost 11 11 G10q 120-277 50,000 135˚ 1000 4000 83 8.1 20
1762535 VIV-T9CBP/8/11W/50/F T9 Circular Bypass 8"11W G13 50K Frost 11 11 G10q 120-277 50,000 135˚ 1000 5000 83 8.1 20
1762773 VIV-T9CBP/12/16W/30/F T9 Circular Bypass 12" 16W G13 30K Frost 16 16 G10q 120-277 50,000 135˚ 1450 3000 83 11.7 20
1762358 VIV-T9CBP/12/16W/35/F T9 Circular Bypass 12" 16W G13 35K Frost 16 16 G10q 120-277 50,000 135˚ 1450 3500 83 11.7 20
1762855 VIV-T9CBP/12/16W/40/F T9 Circular Bypass 12" 16W G13 40K Frost 16 16 G10q 120-277 50,000 135˚ 1450 4000 83 11.7 20
1762536 VIV-T9CBP/12/16W/50/F T9 Circular Bypass 12" 16W G13 50K Frost 16 16 G10q 120-277 50,000 135˚ 1450 5000 83 11.7 20
For the latest stock status please refer to your price list or send us an email at sales@turolight.com
How to read: VIV / T9 CBP / 8W / 30 / F
LED Class Lamp Type Circle Bypass Wattage CCT(K) Frost
TO ORDER PLEASE CALL 1-877-736-0447 OR EMAIL: SALES@TUROLIGHT.COM
Tel: (416) 736-0447 • Toll Free: 1 (877) 736-0447 • Fax: (416) 736-4890 • Email: info@turolight.com • Website: www.turolight.com
