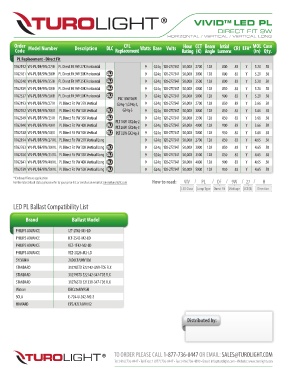

Page 47 - February 2018-Turolight

VIVID™ LED PL

DIRECT FIT 9W
HORIZONTAL / VERTICAL / VERTICAL LONG
Order Model Number Description DLC CFL Watts Base Volts Hour CCT Beam Intial CRI EFA* MOL Case
Code Replacement Rating (K) Angle Lumens (in) Qty.

PL Replacement - Direct Fit
1762192 VIV-PL/DF/9W/27/H PL Direct Fit 9W 27K Horizontal 9 G24q 120-277/347 50,000 2700 120 800 83 Y 5.20 50
1762761 VIV-PL/DF/9W/30/H PL Direct Fit 9W 30K Horizontal 9 G24q 120-277/347 50,000 3000 120 800 83 Y 5.20 50
1762348 VIV-PL/DF/9W/35/H PL Direct Fit 9W 35K Horizontal 9 G24q 120-277/347 50,000 3500 120 800 83 Y 5.20 50
1762839 VIV-PL/DF/9W/40/H PL Direct Fit 9W 40K Horizontal 9 G24q 120-277/347 50,000 4000 120 850 83 Y 5.20 50
1762537 VIV-PL/DF/9W/50/H PL Direct Fit 9W 50K Horizontal 9 G24q 120-277/347 50,000 5000 120 900 83 Y 5.20 50
PLC 18W/26W
1762193 VIV-PL/DF/9W/27/V PL Direct Fit 9W 27K Vertical G24q-1,G24q-2, 9 G24q 120-277/347 50,000 2700 120 850 83 Y 3.66 50
1762762 VIV-PL/DF/9W/30/V PL Direct Fit 9W 30K Vertical G24q-3 9 G24q 120-277/347 50,000 3000 120 850 83 Y 3.66 50
1762349 VIV-PL/DF/9W/35/V PL Direct Fit 9W 35K Vertical 9 G24q 120-277/347 50,000 3500 120 850 83 Y 3.66 50
PLT 18W GX24q-2
1762840 VIV-PL/DF/9W/40/V PL Direct Fit 9W 40K Vertical 9 G24q 120-277/347 50,000 4000 120 900 83 Y 3.66 50
PLT 26W GX24q-3
1762538 VIV-PL/DF/9W/50/V PL Direct Fit 9W 50K Vertical PLT 32W GX24q-3 9 G24q 120-277/347 50,000 5000 120 950 83 Y 3.66 50
1762194 VIV-PL/DF/9W/27/VL PL Direct Fit 9W 27K Vertical Long 9 G24q 120-277/347 50,000 2700 120 850 83 Y 4.65 50
1762763 VIV-PL/DF/9W/30/VL PL Direct Fit 9W 30K Vertical Long 9 G24q 120-277/347 50,000 3000 120 850 83 Y 4.65 50
1762350 VIV-PL/DF/9W/35/VL PL Direct Fit 9W 35K Vertical Long 9 G24q 120-277/347 50,000 3500 120 850 83 Y 4.65 50
1762841 VIV-PL/DF/9W/40/VL PL Direct Fit 9W 40K Vertical Long 9 G24q 120-277/347 50,000 4000 120 900 83 Y 4.65 50
1762539 VIV-PL/DF/9W/50/VL PL Direct Fit 9W 50K Vertical Long 9 G24q 120-277/347 50,000 5000 120 950 83 Y 4.65 50

* Enclosed xture application
For the latest stock status please refer to your price list or send us an email at sales@turolight.com How to read: VIV / PL / DF / 9W / 27 / H
LED Class Lamp Type Direct Fit Wattage CCT(K) Direction

LED PL Ballast Compatibility List

Brand Ballast Model

PHILIPS ADVANCE 1ZT-2T42-M5-LD
PHILIPS ADVANCE ICF-2S42-M2-LD
PHILIPS ADVANCE VEZ-1T42-M2-LD
PHILIPS ADVANCE VEZ-2Q26-M2-LD
SYLVANIA 2X26CF/UNV DM
STANDARD 31278STD E22142-UNV-TDE FLX
STANDARD 31279STD E22142-347-TDE FLX
STANDARD 31276STD E21338-347-TDE FLX
Watran DBC226MVRSN
SOLA E-724-U-242-M2-S
HOWARD EP2/42CF/MV/K2
