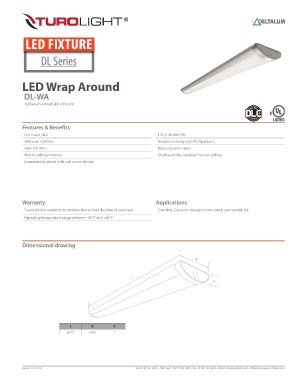

LED FIXTURE
DL Series
LED Wrap Around
DL-WA
Surface mounted LED 4’ fixture
Features & Benefits
CUL listed, DLC L70 @ 50,000 HRS
40W with 4,000 lm Aluminium body with PC Opal Lens
High CRI (80+) Damp location rated
Wall or ceiling mounted Shallow profile, excellent for low ceilings
Economically priced with soft corner design
Warranty Applications
5-year limited warranty in commercial use from the date of purchase Corridors, Carports, storage rooms, retail, commercial, etc.
Operating temperature range between -20˚C and +40˚C
Dimensional drawing
W
L
H
L W H
48 1/2” 5 9/16” 2”
