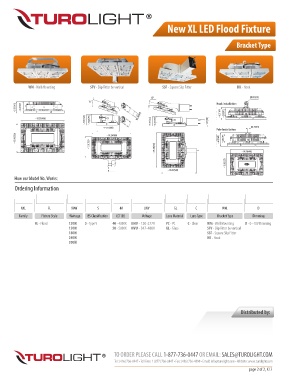

Page 63 - February 2018-Turolight
P. 63

New XL LED Flood Fixture


                                                                                                    Bracket Type










             WM - Wall Mounting        SFV - Slip Fitter by vertical  SSF - Square Slip Fitter      HK - Hook

                                                                15°                                       Ø0.55(14)
                                      15°                                                  Hook installation
       ~5.51(140)  ~3.82(97)

                                    ~5.51(140)  ~3.821(97)      ~5.51(140)  ~3.821(97)  ~1.97 50)
                ~19.29(490)                               Ø2.36(60)                          ~6.3(160)  ~3.82(97)
                                            ~14.17(360)                                                   G0.75(19)
                                                                                           Pole Installation
       ~12.99(330)                            ~19.29(490)                                    ~6.3(160)  ~3.82(97)
                                      ~12.8(325)                  ~19.29(490)                         ~19.29(490)



                                                                                               ~12.8(325)

                                                                       ~19.69(500)
       How our Model No. Works:
       Ordering Information
       Ordering Information



          NXL        FL        90W        5        40        UNV          GL       C          WM             D
         Family   Fixture Style  Wattage  IES Classication  CCT (K)  Voltage  Lens Material  Lens Type  Bracket Type  Dimming
                FL - Flood    120W   5 - Type V  40 - 4000K  UNV - 120-277V  PC - PC  C - Clear  WM - Wall Mounting  D - 0~10V Dimming
                              150W              50 - 5000K  HVU - 347-480V  GL - Glass  SFV - Slip Fitter by vertical
                              180W                                                      SSF - Square Slip Fitter
                              240W                                                      HK - Hook
                              300W
















                                                                                                      Distributed by:









                                                 TO ORDER PLEASE CALL 1-877-736-0447 OR EMAIL: SALES@TUROLIGHT.COM

                                                 Tel: (416) 736-0447 • Toll Free: 1 (877) 736-0447 • Fax: (416) 736-4890 • Email: info@turolight.com • Website: www.turolight.com
                                                                                                         page 2 of 2, K17
