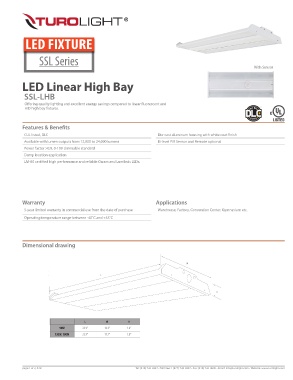

Page 67 - February 2018-Turolight
P. 67

LED FIXTURE



                 SSL Series

                                                                                                           With Sensor

          LED Linear High Bay


           SSL-LHB
           Offering quality lighting and excellent energy savings compared to linear fluorescent and
           HID high bay fixtures.


          Features & Benefits
           CUL listed, DLC                                         Die-cast aluminum housing with white coat finish
           Available with lumen outputs from 12,000 to 24,000 lumens  Bi-level PIR Sensor and Remote optional
           Power factor >0.9. 0-10V dimmable standard
           Damp location application
           LM-80 certified high performance and reliable Osram and Lumileds LEDs.








          Warranty                                                Applications
           5-year limited warranty in commercial use from the date of purchase  Warehouse, Factory, Convention Center, Gymnasium etc.
           Operating temperature range between -40˚C and +55˚C





          Dimensional drawing



                                                                               W

                                           L



                                                                                           H





                                    L        W         H
                          90W       23.9”    10.3”    1.8”
                        130W, 180W  23.9”    19.7”    1.8”
