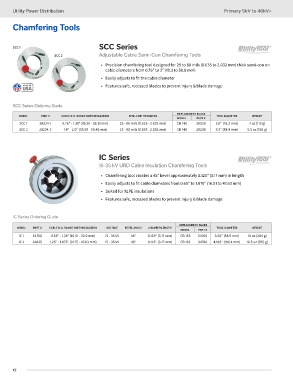

Page 12 - Utility Catalog 2018

Utility Power Distribution Primary 5kV to 46kV+

Chamfering Tools

SCC Series
SCC 1
SCC 2 Adjustable Cable Semi-Con Chamfering Tools
• Precision chamfering tool designed for 25 to 80 mils (0.635 to 2.032 mm) thick semi-con on
cable diameters from 0.76″ to 2″ (19.3 to 50.8 mm)
• Easily adjusts to fit the cable diameter
• Features safe, recessed blades to prevent injury & blade damage

SCC Series Ordering Guide
REPLACEMENT BLADE
MODEL PART # CABLE O.D. RANGE OVER INSULATION SEMI-CON THICKNESS TOOL DIAMETER WEIGHT
MODEL PART #
SCC 1 28224-1 0.76″ - 1.39″ (19.30 - 35.31 mm) 25 - 80 mils (0.635 - 2.032 mm) CB 140 28230 3.0″ (76.2 mm) 4 oz (113 g)
SCC 2 28224-2 1.4″ - 2.0″ (35.56 - 50.80 mm) 25 - 80 mils (0.635 - 2.032 mm) CB 140 28230 3.5″ (88.9 mm) 5.5 oz (156 g)

IC Series
15-35 kV URD Cable Insulation Chamfering Tools

• Chamfering tool creates a 45° bevel approximately 0.125″ (3.17 mm) in length
• Easily adjusts to fit cable diameters from 0.65″ to 1.875″ (16.51 to 47.63 mm)
• Suited for XLPE insulations
• Features safe, recessed blades to prevent injury & blade damage

IC Series Ordering Guide
REPLACEMENT BLADE
MODEL PART # CABLE O.D. RANGE OVER INSULATION VOLTAGE BEVEL ANGLE CHAMFER LENGTH TOOL DIAMETER WEIGHT
MODEL PART #
IC 1 34760 0.65″ - 1.26″ (16.51 - 32.0 mm) 15 - 35 kV 45° 0.125″ (3.17 mm) CB 163 34766 3.50″ (88.9 mm) 10 oz (284 g)
IC 2 34825 1.25″ - 1.875″ (31.75 - 47.63 mm) 15 - 35 kV 45° 0.125″ (3.17 mm) CB 163 34766 4.188″ (106.4 mm) 12.5 oz (355 g)
