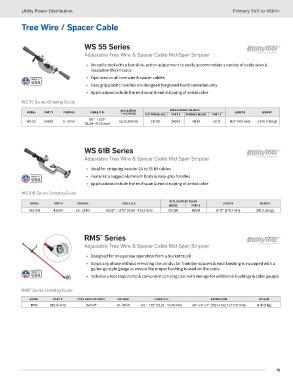

Page 15 - Utility Catalog 2018

Utility Power Distribution Primary 5kV to 46kV+

Tree Wire / Spacer Cable

WS 55 Series

Adjustable Tree Wire & Spacer Cable Mid-Span Stripper
• Versatile tool with a fast slide-action adjustment to easily accommodate a variety of cable sizes &
insulation thicknesses
• Operates on all tree wire & spacer cables
• Easy grip plastic handles are designed for gloved hand operation only
• Applications include the mid-span & end stripping of aerial cable

WS 55 Series Ordering Guide

MODEL PART # VOLTAGE CABLE O.D. INSULATION CUTTING BLADE REPLACEMENT BLADES PART # LENGTH WEIGHT
THICKNESS
RINGING BLADE
PART #
0.6″ - 1.625″
WS 55 34260 5 - 25 kV Up to 300 mil CB 100 34294 CB 19 10112 16.5″ (419 mm) 2.6 lb (1.18 kg)
(15.24 - 41.25 mm)

WS 61B Series
Adjustable Tree Wire & Spacer Cable Mid-Span Stripper

• Ideal for stripping heavier 25 to 35 kV cables
• Features a rugged aluminum body & easy-grip handles
• Applications include the mid-span & end stripping of aerial cable

WS 61B Series Ordering Guide
REPLACEMENT BLADE
MODEL PART # VOLTAGE CABLE O.D. LENGTH WEIGHT
MODEL PART #
WS 61B 43590 25 - 35 kV 0.625″ - 1.875″ (15.88 - 47.63 mm) CB 286 43591 14.75″ (374.7 mm) 3 lb (1.36 kg)

RMS Series
®
Adjustable Tree Wire & Spacer Cable Mid-Span Stripper

• Designed for one person operation from a bucket truck
• Strips any phase without removing the conductor from the spacers & each bushing is equipped with a
go/no-go style gauge to ensure the proper bushing is used on the cable
• Includes a tool stop clamp & convenient carrying case with storage for additional bushings & cable gauges

®
RMS Series Ordering Guide
MODEL PART # TOOL HEAD MATERIAL VOLTAGE CABLE O.D. DIMENSIONS WEIGHT
RMS 38210-048 Delrin® 10 - 35 kV 0.6″ - 1.75″ (15.24 - 44.45 mm) 60″ x 6″ x 7″ (1524 x 152.4 x 177.8 mm) 11 lb (5 kg)

14 15
