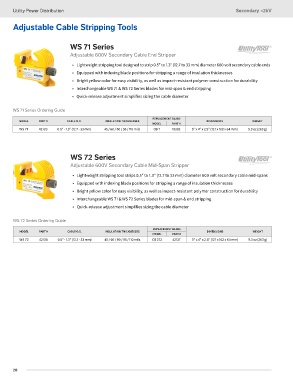

Page 20 - Utility Catalog 2018

Utility Power Distribution Secondary <2kV

Adjustable Cable Stripping Tools

WS 71 Series

Adjustable 600V Secondary Cable End Stripper
• Lightweight stripping tool designed to strip 0.5″ to 1.3″ (12.7 to 33 mm) diameter 600 volt secondary cable ends
• Equipped with indexing blade positions for stripping a range of insulation thicknesses
• Bright yellow color for easy visibility, as well as impact-resistant polymer construction for durability
• Interchangeable WS 71 & WS 72 Series blades for mid-span & end stripping
• Quick-release adjustment simplifies sizing the cable diameter

WS 71 Series Ordering Guide
REPLACEMENT BLADE
MODEL PART # CABLE O.D. INSULATION THICKNESSES DIMENSIONS WEIGHT
MODEL PART #
WS 71 42120 0.5″ - 1.3″ (12.7 - 33 mm) 45 / 60 / 80 / 95 / 110 mils CB 7 10302 5″ x 4″ x 2.5″ (127 x 102 x 64 mm) 9.3 oz (263 g)

WS 72 Series
Adjustable 600V Secondary Cable Mid-Span Stripper

• Lightweight stripping tool strips 0.5″ to 1.3″ (12.7 to 33 mm) diameter 600 volt secondary cable mid-spans
• Equipped with indexing blade positions for stripping a range of insulation thicknesses
• Bright yellow color for easy visibility, as well as impact-resistant polymer construction for durability
• Interchangeable WS 71 & WS 72 Series blades for mid-span & end stripping
• Quick-release adjustment simplifies sizing the cable diameter

WS 72 Series Ordering Guide
REPLACEMENT BLADE
MODEL PART # CABLE O.D. INSULATION THICKNESSES DIMENSIONS WEIGHT
MODEL PART #
WS 72 42130 0.5″ - 1.3″ (12.7 - 33 mm) 45 / 60 / 80 / 95 / 110 mils CB 272 42137 5″ x 4″ x 2.5″ (127 x 102 x 64 mm) 9.3 oz (263 g)
