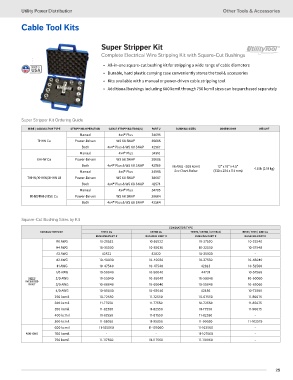

Page 25 - Utility Catalog 2018
P. 25
Utility Power Distribution Other Tools & Accessories
Cable Tool Kits
Super Stripper Kit
Complete Electrical Wire Stripping Kit with Square-Cut Bushings
• All-in-one square-cut bushing kit for stripping a wide range of cable diameters
• Durable, hard plastic carrying case conveniently stores the tool & accessories
• Kits available with a manual or power-driven cable stripping tool
• Additional bushings including 600 kcmil through 750 kcmil sizes can be purchased separately
Super Stripper Kit Ordering Guide
WIRE / CONDUCTOR TYPE STRIPPING OPERATION CABLE STRIPPING TOOL(S) PART # BUSHING SIZES DIMENSIONS WEIGHT
Manual 4x4® Plus 34695
THHN Cu Power-Driven WS 68 SNAP 38685
Both 4x4® Plus & WS 68 SNAP 42567
Manual 4x4® Plus 34910
XHHW Cu Power-Driven WS 68 SNAP 38686
Both 4x4® Plus & WS 68 SNAP 42569 #6 AWG - 500 kcmil 13″ x 10″ x 4.5″
Manual 4x4® Plus 34998 See Chart Below (330 x 254 x 114 mm) 4.8 lb (2.18 kg)
THHN/XHHW/XHHN Al Power-Driven WS 68 SNAP 38687
Both 4x4® Plus & WS 68 SNAP 42574
Manual 4x4® Plus 34785
RHW/RHH/USE Cu Power-Driven WS 68 SNAP 38684
Both 4x4® Plus & WS 68 SNAP 42564
Square-Cut Bushing Sizes by Kit
CONDUCTOR TYPE
CONDUCTOR SIZE THHN Cu XHHW Cu THHN / XHHW / XHHN Al RHW / RHH / USE Cu
BUSHING PART # BUSHING PART # BUSHING PART # BUSHING PART #
#6 AWG 10-26522 10-26522 10-27530 10-32540
#4 AWG 10-35030 10-35030 10-32530 10-37540
#3 AWG 42822 42822 10-35030 -
#2 AWG 10-40030 10-40030 10-37530 10-45040
#1 AWG 10-47540 10-47540 42823 10-52560
1/0 AWG 10-50040 10-50040 44731 10-57560
SIZES 2/0 AWG 10-55040 10-55040 10-50040 10-60060
INCLUDED
IN KIT 3/0 AWG 10-60040 10-60040 10-55040 10-65060
4/0 AWG 10-65040 10-65040 42486 10-72560
250 kcmil 10-72550 11-72550 10-67550 11-80075
300 kcmil 11-77550 11-77550 10-72550 11-85075
350 kcmil 11-82550 11-82550 11-77550 11-90075
400 kcmil 11-87550 11-87550 11-82550 -
500 kcmil 11-95050 11-95050 11-90050 11-102575
600 kcmil 11-105060 11-105060 11-102560 -
ADD-ONS 700 kcmil - - 11-107560 -
750 kcmil 11-117560 11-117560 11-110060 -
