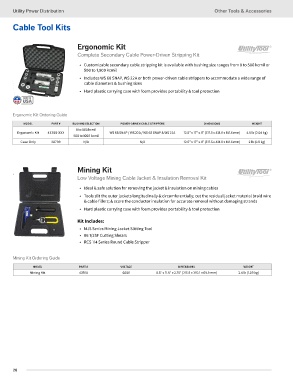

Page 26 - Utility Catalog 2018

Utility Power Distribution Other Tools & Accessories

Cable Tool Kits

Ergonomic Kit

Complete Secondary Cable Power-Driven Stripping Kit
• Customizable secondary cable stripping kit is available with bushing size ranges from 8 to 500 kcmil or
500 to 1,000 kcmil
• Includes WS 68 SNAP, WS 22A or both power-driven cable strippers to accommodate a wide range of
cable diameters & bushing sizes
• Hard plastic carrying case with foam provides portability & tool protection

Ergonomic Kit Ordering Guide

MODEL PART # BUSHING SELECTION POWER-DRIVEN CABLE STRIPPERS DIMENSIONS WEIGHT
8 to 500 kcmil
Ergonomic Kit 43300-XXX WS 68 SNAP / WS 22A / WS 68 SNAP & WS 22A 12.5″ x 17″ x 4″ (317.5 x 431.8 x 101.6 mm) 4.5 lb (2.04 kg)
500 to 1000 kcmil
Case Only 38799 N/A N/A 12.5″ x 17″ x 4″ (317.5 x 431.8 x 101.6 mm) 2 lb (0.9 kg)

Mining Kit

Low Voltage Mining Cable Jacket & Insulation Removal Kit
• Ideal & safe solution for removing the jacket & insulation on mining cables
• Tools slit the outer jackets longitudinally & circumferentially; cut the residual jacket material braid wire
& cable fillers; & score the conductor insulation for accurate removal without damaging strands
• Hard plastic carrying case with foam provides portability & tool protection

Kit Includes:
• MJS Series Mining Jacket Slitting Tool
• 86 1/2SF Cutting Shears
• RCS 114 Series Round Cable Stripper

Mining Kit Ordering Guide

MODEL PART # VOLTAGE DIMENSIONS WEIGHT
Mining Kit 43910 600V 8.5″ x 11.5″ x 2.75″ (215.9 x 292.1 x 69.9 mm) 2.4 lb (1.09 kg)
