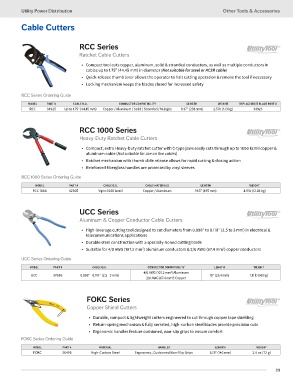

Page 23 - Utility Catalog 2018

Utility Power Distribution Other Tools & Accessories

Cable Cutters

RCC Series

Ratchet Cable Cutters
• Compact tool cuts copper, aluminum, solid & stranded conductors, as well as multiple conductors in
cables up to 1.75″ (44.45 mm) in diameter (Not suitable for steel or ACSR cable)
• Quick-release thumb lever allows the operator to halt cutting operation & remove the tool if necessary
• Locking mechanism keeps the blades closed for increased safety

RCC Series Ordering Guide
MODEL PART # CABLE O.D. CONDUCTOR COMPATIBILITY LENGTH WEIGHT REPLACEMENT BLADE PART #
RCC 34925 Up to 1.75″ (44.45 mm) Copper / Aluminum / Solid / Stranded / Multiple 9.37″ (238 mm) 2.5 lb (1.13 kg) 34923

RCC 1000 Series
Heavy-Duty Ratchet Cable Cutters

• Compact, extra Heavy-Duty ratchet cutter with C-type jaws easily cuts through up to 1000 kcmil copper &
aluminum cable (Not suitable for use on live cables)
• Ratchet mechanism with thumb slide release allows for rapid cutting & closing action
• Reinforced fiberglass handles are protected by vinyl sleeves

RCC 1000 Series Ordering Guide
MODEL PART # CABLE O.D. CABLE MATERIALS LENGTH WEIGHT
RCC 1000 42305 Up to 1000 kcmil Copper / Aluminum 19.5″ (495 mm) 4.5 lb (12.04 kg)

UCC Series
Aluminum & Copper Conductor Cable Cutters

• High-leverage cutting tool designed to cut diameters from 0.098″ to 0.118″ (2.5 to 3 mm) in electrical &
telecommunications applications
• Durable steel construction with a specially-honed cutting blade
• Suitable for 4/0 AWG (107.2 mm ) aluminum conductors & 2/0 AWG (67.4 mm ) copper conductors
2
2
UCC Series Ordering Guide
MODEL PART # CABLE O.D. CONDUCTOR COMPATIBILITY LENGTH WEIGHT
4/0 AWG (107.2mm ) Aluminum
2

UCC 37680 0.098″ - 0.118″ (2.5 - 3 mm) 10″ (25.4 mm) 1.11 lb (503 g)
2/0 AWG (67.4 mm ) Copper
2
FOKC Series
Copper Shield Cutters

• Durable, compact & lightweight cutters engineered to cut through copper tape shielding
• Return-spring mechanism & fully serrated, high-carbon steel blades provide precision cuts
• Ergonomic handles feature cushioned, non-slip grips to ensure comfort
FOKC Series Ordering Guide
MODEL PART # MATERIAL HANDLES LENGTH WEIGHT
FOKC 36495 High-Carbon Steel Ergonomic, Cushioned Non-Slip Grips 5.75″ (146 mm) 2.5 oz (72 g)

22 23
