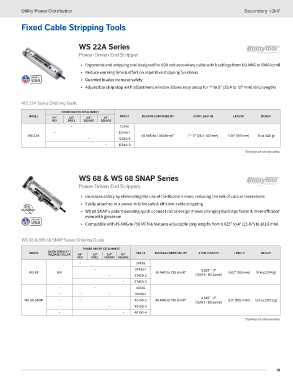

Page 19 - Utility Catalog 2018

Utility Power Distribution Secondary <2kV

Fixed Cable Stripping Tools

WS 22A Series

Power-Driven End Stripper
• Ergonomic end stripping tool designed for 600 volt secondary cable with bushings from 1/0 AWG to 1000 kcmil
• Reduce working time & effort on repetitive stripping functions
• Guarded blades increase safety
• Adjustable strip stop with adjustment window allows easy setup for 1″ to 5″ (25.4 to 127 mm) strip lengths

WS 22A Series Ordering Guide

POWER DRIVER ATTACHMENT
MODEL 1/4″ 3/8″ 3/8″ 1/2″ PART # BUSHING COMPATIBILITY STRIP LENGTHS LENGTH WEIGHT
HEX DRILL SQUARE SQUARE
∙ 12340
∙ 12340-1
WS 22A 1/0 AWG to 1,000 kcmil* 1″ - 5″ (25.4 - 127 mm) 7.44″ (189 mm) 15 oz (426 g)
∙ 12340-2
∙ 12340-3
*Bushings are sold separately.

WS 68 & WS 68 SNAP Series

Power-Driven End Strippers
• Increases safety by eliminating the use of traditional knives, reducing the risk of cuts or lacerations
• Easily attaches to a power drill for safe & efficient cable stripping
• WS 68 SNAP's patent-pending quick connect collar design makes changing bushings faster & more efficient
even with gloves on
• Compatible with #6 AWG to 750 MCM & features adjustable strip lengths from 0.625″ to 4″ (15.875 to 101.6 mm)

WS 68 & WS 68 SNAP Series Ordering Guide
POWER DRIVER ATTACHMENT
QUICK CONNECT /
MODEL PART # BUSHING COMPATIBILITY STRIP LENGTHS LENGTH WEIGHT
RELEASE COLLAR 1/4″ 3/8″ 3/8″ 1/2″
HEX DRILL SQUARE SQUARE
∙ 37430
∙ 37430-1 0.625″ - 4″
WS 68 N/A #6 AWG to 750 kcmil* 6.63″ (168 mm) 10.4 oz (294 g)
∙ 37430-2 (15.875 - 101.6 mm)
∙ 37430-3
∙ ∙ 40100
∙ ∙ ∙ 40100-1
0.625″ - 4″
WS 68 SNAP ∙ ∙ 40100-2 #6 AWG to 750 kcmil* 6.5″ (165.1 mm) 12.6 oz (357.2 g)
(15.875 - 101.6 mm)
∙ ∙ 40100-3
∙ ∙ 40100-4
*Bushings are sold separately.
