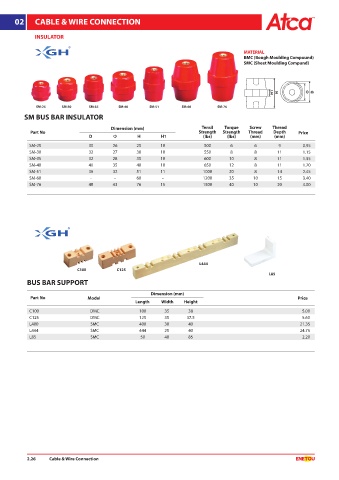

Page 42 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

INSULATOR
®
MATERIAL
BMC (Bough Moulding Compound)
SMC (Sheet Moulding Compund)

H1 H D

SM-25 SM-30 SM-35 SM-40 SM-51 SM-60 SM-76
SM BUS BAR INSULATOR

Dimension (mm) Tensil Torque Screw Thread
Part No Strength Strength Thread Depth Price
D H H1 (lbs) (lbs) (mm) (mm)
SM-25 30 26 25 10 500 6 6 9 0.95
SM-30 32 27 30 10 550 8 8 11 1.15
SM-35 32 28 35 10 600 10 8 11 1.35
SM-40 40 35 40 10 650 12 8 11 1.70
SM-51 36 32 51 11 1000 20 8 14 2.45
SM-60 - - 60 - 1200 35 10 15 3.40
SM-76 48 43 76 15 1500 40 10 20 4.00

®

L444
C100 C125
L85
BUS BAR SUPPORT

Dimension (mm)
Part No Model Price
Length Width Height
C100 DMC 100 35 38 5.00
C125 DMC 125 35 37.5 5.60
L400 SMC 400 30 40 21.35
L444 SMC 444 25 40 24.75
L85 SMC 50 40 85 2.20

2.26 Cable & Wire Connection
