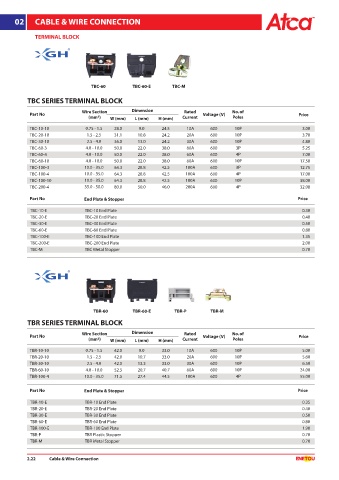

Page 38 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

TERMINAL BLOCK
®

TBC-60 TBC-60-E TBC-M

TBC SERIES TERMINAL BLOCK

Wire Section Dimension Rated No. of
Part No Voltage (V) Price
(mm²) W (mm) L (mm) H (mm) Current Poles
TBC-10-10 0.75 - 1.5 28.0 9.0 24.5 10A 600 10P 3.00
TBC-20-10 1.5 - 2.5 31.1 10.8 24.2 20A 600 10P 3.70
TBC-30-10 2.5 - 4.0 36.0 13.0 24.2 30A 600 10P 4.80
TBC-60-3 4.0 - 10.0 50.0 22.0 38.0 60A 600 3P 5.25
TBC-60-4 4.0 - 10.0 50.0 22.0 38.0 60A 600 4P 7.00
TBC-60-10 4.0 - 10.0 50.0 22.0 38.0 60A 600 10P 17.50
TBC-100-3 10.0 - 35.0 64.3 28.8 42.5 100A 600 3P 12.75
TBC-100-4 10.0 - 35.0 64.3 28.8 42.5 100A 600 4P 17.00
TBC-100-10 10.0 - 35.0 64.3 28.8 42.5 100A 600 10P 38.00
TBC-200-4 35.0 - 50.0 80.0 50.0 46.0 200A 600 4P 32.00

Part No End Plate & Stopper Price

TBC-10-E TBC-10 End Plate 0.30
TBC-20-E TBC-20 End Plate 0.40
TBC-30-E TBC-30 End Plate 0.50
TBC-60-E TBC-60 End Plate 0.80
TBC-100-E TBC-100 End Plate 1.35
TBC-200-E TBC-200 End Plate 2.00
TBC-M TBC Metal Stopper 0.70

®

TBR-60 TBR-60-E TBR-P TBR-M
TBR SERIES TERMINAL BLOCK

Wire Section Dimension Rated No. of
Part No Voltage (V) Price
(mm²) W (mm) L (mm) H (mm) Current Poles
TBR-10-10 0.75 - 1.5 42.0 9.0 33.0 10A 600 10P 5.00
TBR-20-10 1.5 - 2.5 42.0 10.7 33.0 20A 600 10P 5.60
TBR-30-10 2.5 - 4.0 42.0 13.3 33.0 30A 600 10P 6.50
TBR-60-10 4.0 - 10.0 52.5 20.7 40.7 60A 600 10P 24.00
TBR-100-4 10.0 - 35.0 71.5 27.4 44.5 100A 600 4P 55.00

Part No End Plate & Stopper Price

TBR-10-E TBR-10 End Plate 0.35
TBR-20-E TBR-20 End Plate 0.40
TBR-30-E TBR-30 End Plate 0.50
TBR-60-E TBR-60 End Plate 0.80
TBR-100-E TBR-100 End Plate 1.90
TBR-P TBR Plastic Stopper 0.70
TBR-M TBR Metal Stopper 0.70

2.22 Cable & Wire Connection
