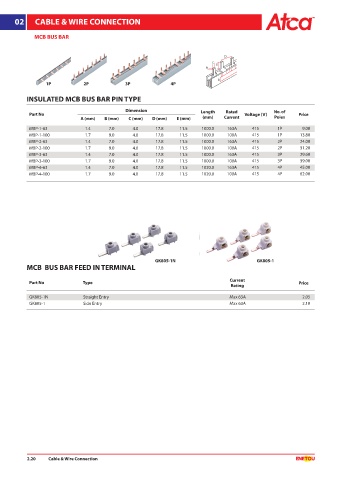

Page 36 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

MCB BUS BAR

D
C
E
A
B
1P 2P 3P 4P

INSULATED MCB BUS BAR PIN TYPE

Dimension Length Rated No. of
Part No Voltage (V) Price
A (mm) B (mm) C (mm) D (mm) E (mm) (mm) Current Poles
MBP-1-63 1.4 7.0 4.0 17.8 11.5 1000.0 163A 415 1P 9.00
MBP-1-100 1.7 9.0 4.0 17.8 11.5 1000.0 100A 415 1P 13.80
MBP-2-63 1.4 7.0 4.0 17.8 11.5 1000.0 163A 415 2P 24.00
MBP-2-100 1.7 9.0 4.0 17.8 11.5 1000.0 100A 415 2P 31.20
MBP-3-63 1.4 7.0 4.0 17.8 11.5 1000.0 163A 415 3P 29.60
MBP-3-100 1.7 9.0 4.0 17.8 11.5 1000.0 100A 415 3P 39.00
MBP-4-63 1.4 7.0 4.0 17.8 11.5 1020.0 163A 415 4P 45.00
MBP-4-100 1.7 9.0 4.0 17.8 11.5 1020.0 100A 415 4P 62.00

GK805-1N GK805-1
MCB BUS BAR FEED IN TERMINAL

Current
Part No Type Price
Rating
GK805-1N Straight Entry Max 63A 2.05
GK805-1 Side Entry Max 63A 2.10

2.20 Cable & Wire Connection
