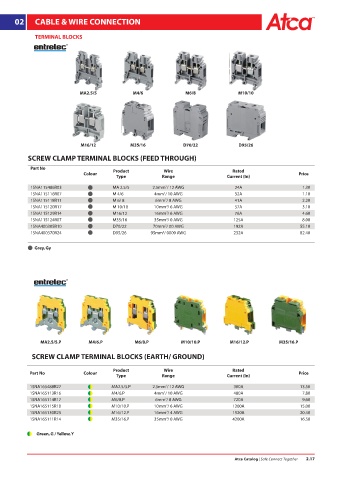

Page 33 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

TERMINAL BLOCKS

MA2.5/5 M4/6 M6/8 M10/10

M16/12 M35/16 D70/22 D95/26

SCREW CLAMP TERMINAL BLOCKS (FEED THROUGH)
Part No Product Wire Rated
Colour Price
Type Range Current (In)
1SNA115486R03 MA 2.5/5 2.5mm / 12 AWG 24A 1.30
2
1SNA115116R07 M 4/6 4mm / 10 AWG 32A 1.10
2
2
1SNA115118R11 M 6/ 8 6mm / 8 AWG 41A 2.20
2
1SNA115120R17 M 10/10 10mm / 6 AWG 57A 3.10
1SNA115129R14 M16/12 16mm / 6 AWG 76A 4.60
2
1SNA115124R07 M35/16 35mm / 0 AWG 125A 8.00
2
1SNA400305R10 D70/22 70mm / 00 AWG 192A 55.10
2
2
1SNA400370R24 D95/26 95mm / 0000 AWG 232A 82.40
Grey, Gy

MA2.5/5.P M4/6.P M6/8.P M10/10.P M16/12.P M35/16.P

SCREW CLAMP TERMINAL BLOCKS (EARTH/ GROUND)

Product Wire Rated
Part No Colour Price
Type Range Current (In)
1SNA165488R27 MA2.5/5.P 2.5mm / 12 AWG 300A 13.50
2
1SNA165113R16 M4/6.P 4mm / 10 AWG 480A 7.80
2
1SNA165114R17 M6/8.P 6mm / 8 AWG 720A 9.60
2
1SNA165115R10 M10/10.P 10mm / 6 AWG 1200A 15.00
2
1SNA165130R23 M16/12.P 16mm / 4 AWG 1920A 20.40
2
1SNA165111R14 M35/16.P 35mm / 0 AWG 4200A 16.50
2
Green, G / Yellow, Y

Atca Catalog | Safe Connect Together 2.17
