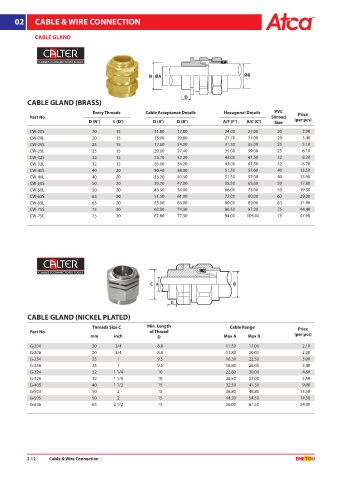

Page 28 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

CABLE GLAND

N ØA ØB

D
CABLE GLAND (BRASS)
Entry Threads Cable Acceptance Details Hexagonal Details PVC Price
Part No Shroud
D (N’) L (D’) D (A’) D (B’) A/F (F’) A/C (C’) Size (per pcs)
CW-20S 20 15 11.80 17.80 24.00 27.00 20 2.90
CW-20L 20 15 15.00 20.80 27.70 31.00 20 3.40
CW-25S 25 15 17.60 24.00 31.50 35.00 25 5.10
CW-25L 25 15 20.00 27.40 35.00 39.00 25 6.10
CW-32S 32 15 25.70 32.20 43.00 47.50 32 8.20
CW-32L 32 15 26.00 34.20 43.00 47.50 32 8.70
CW-40S 40 20 30.40 38.00 51.50 57.00 40 13.50
CW-40L 40 20 33.20 40.50 51.50 57.00 40 13.90
CW-50S 50 20 39.70 47.00 58.50 65.00 50 17.80
CW-50L 50 20 43.50 54.00 66.00 73.00 50 19.30
CW-63S 63 20 51.50 61.00 72.00 80.00 63 29.00
CW-63L 63 20 55.00 66.00 80.00 89.00 63 31.90
CW-75S 75 20 62.50 74.50 86.50 97.00 75 44.40
CW-75L 75 20 67.80 77.50 94.00 105.00 75 47.90

C A B

D

CABLE GLAND (NICKEL PLATED)
Threads Size C Min. Length Cable Range Price
Part No of Thread
mm inch D Max A Max B (per pcs)
G-204 20 3/4 8.8 11.50 17.00 2.10
G-206 20 3/4 8.8 13.80 20.00 2.20
G-254 25 1 9.5 16.30 22.50 3.00
G-256 25 1 9.5 18.80 26.00 3.40
G-324 32 1 1/4 10 22.80 30.00 4.80
G-326 32 1 1/4 10 26.50 33.00 5.50
G-405 40 1 1/2 15 32.50 41.30 9.00
G-503 50 2 15 38.80 48.80 13.50
G-505 50 2 15 44.50 54.50 14.50
G-636 63 2 1/2 15 56.00 67.50 24.00

2.12 Cable & Wire Connection
