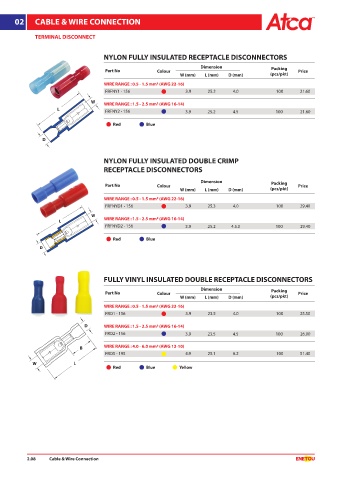

Page 24 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

TERMINAL DISCONNECT

NYLON FULLY INSULATED RECEPTACLE DISCONNECTORS
Dimension Packing
Part No Colour Price
W (mm) L (mm) D (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
FRFNY1 - 156 3.9 25.2 4.0 100 21.60
W
WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
L
FRFNY2 - 156 3.9 25.2 4.5 100 21.60
Red Blue

D

NYLON FULLY INSULATED DOUBLE CRIMP
RECEPTACLE DISCONNECTORS

Dimension Packing
Part No Colour Price
W (mm) L (mm) D (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
FRFNYD1 - 156 3.9 25.3 4.0 100 29.40
W
L WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
FRFNYD2 - 156 3.9 25.2 4.5.0 100 29.40

Red Blue
D

FULLY VINYL INSULATED DOUBLE RECEPTACLE DISCONNECTORS

Dimension
Part No Colour Packing Price
W (mm) L (mm) D (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
FRD1 - 156 3.9 23.5 4.0 100 25.50

D WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
FRD2 - 156 3.9 23.5 4.5 100 26.00

B WIRE RANGE : 4.0 - 6.0 mm² (AWG 12-10)
FRD5 - 195 4.9 25.1 6.2 100 51.40
W L
Red Blue Yellow

2.08 Cable & Wire Connection
