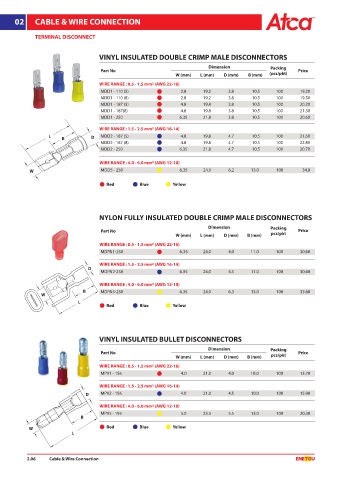

Page 22 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

TERMINAL DISCONNECT

VINYL INSULATED DOUBLE CRIMP MALE DISCONNECTORS
Dimension Packing
Part No Price
W (mm) L (mm) D (mm) B (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
MDD1 - 110 (5) 2.8 19.2 3.8 10.5 100 19.20
MDD1 - 110 (8) 2.8 19.2 3.8 10.5 100 19.50
MDD1 - 187 (5) 4.8 19.8 3.8 10.5 100 20.20
MDD1 - 187(8) 4.8 19.8 3.8 10.5 100 21.30
MDD1 - 250 6.35 21.8 3.8 10.5 100 20.60

WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
L D MDD2 - 187 (5) 4.8 19.8 4.7 10.5 100 21.60
B
MDD2 - 187 (8) 4.8 19.8 4.7 10.5 100 22.80
MDD2 - 250 6.35 21.8 4.7 10.5 100 20.70

WIRE RANGE : 4.0 - 6.0 mm² (AWG 12-10)
W MDD5 - 250 6.35 24.0 6.2 13.0 100 34.8

Red Blue Yellow

NYLON FULLY INSULATED DOUBLE CRIMP MALE DISCONNECTORS
Dimension Packing
Part No Price
W (mm) L (mm) D (mm) B (mm) pcs/pkt
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
MDFN1-250 6.35 24.0 4.0 11.0 100 30.60
WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
D
MDFN2-250 6.35 24.0 4.5 11.0 100 30.60

WIRE RANGE : 4.0 - 6.0 mm² (AWG 12-10)
B MDFN5-250 6.35 24.0 6.3 13.0 100 33.60
W
L
Red Blue Yellow

VINYL INSULATED BULLET DISCONNECTORS
Dimension Packing
Part No pcs/pkt Price
W (mm) L (mm) D (mm) B (mm)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
MPV1 - 156 4.0 21.0 4.0 10.0 100 13.70

WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
D MPV2 - 156 4.0 21.0 4.5 10.0 100 15.00
WIRE RANGE : 4.0 - 6.0 mm² (AWG 12-10)
MPV5 - 195 5.0 23.5 5.5 13.0 100 20.30
B
W Red Blue Yellow
L

2.06 Cable & Wire Connection
