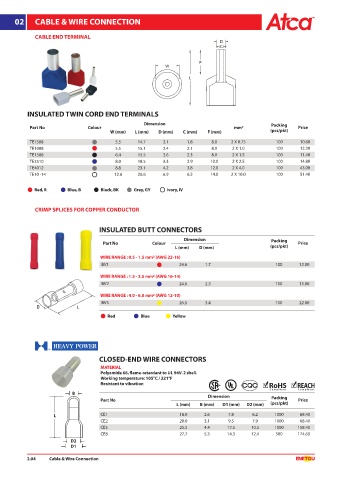

Page 20 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

CABLE END TERMINAL
D
C

F
W
L

INSULATED TWIN CORD END TERMINALS

Dimension Packing
Part No Colour mm² Price
W (mm) L (mm) D (mm) C (mm) F (mm) (pcs/pkt)
TE7508 5.5 14.7 2.1 1.8 8.0 2 X 0.75 100 10.60
TE1008 5.5 15.1 2.4 2.1 8.0 2 X 1.0 100 12.20
TE1508 6.4 15.5 2.6 2.3 8.0 2 X 1.5 100 11.40
TE2510 8.0 18.5 3.3 2.9 10.0 2 X 2.5 100 14.80
TE4012 8.8 23.1 4.2 3.8 12.0 2 X 4.0 100 43.00
TE10 -14 12.6 26.6 6.9 6.5 14.0 2 X 10.0 100 51.40

Red, R Blue, B Black, BK Grey, GY Ivory, IV

CRIMP SPLICES FOR COPPER CONDUCTOR

INSULATED BUTT CONNECTORS
Dimension Packing
Part No Colour Price
L (mm) D (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
BV1 24.6 1.7 100 12.00
WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
BV2 24.6 2.3 100 15.00
WIRE RANGE : 4.0 - 6.0 mm² (AWG 12-10)
BV5 26.5 3.4 100 22.00

Red Blue Yellow

CLOSED-END WIRE CONNECTORS
MATERIAL
Polyamide 66, flame-retardant to UL 94V-2 shell.
Working temperature: 105°C / 221°F
Resistant to vibration
B
Dimension Packing
Part No Price
L (mm) B (mm) D1 (mm) D2 (mm) (pcs/pkt)
L CE1 18.0 2.6 7.8 6.2 1000 68.40
CE2 20.0 3.1 9.5 7.9 1000 68.40
CE5 25.5 4.4 12.5 10.5 1000 158.40
CE8 27.7 5.3 14.3 12.4 500 174.60
D2
D1

2.04 Cable & Wire Connection
