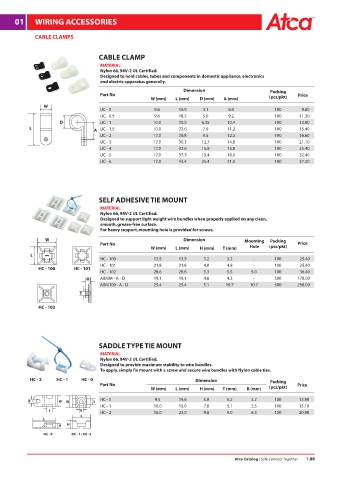

Page 15 - ATCA CATALOG 2019

01 WIRING ACCESSORIES

CABLE CLAMPS

CABLE CLAMP
MATERIAL
Nylon 66, 94V-2 UL Certified.
Designed to hold cables, tubes and components in domestic appliance, electronics
and electric apparatus generally.
Dimension Packing
Part No Price
W (mm) L (mm) D (mm) A (mm) (pcs/pkt)
W
UC - 0 9.6 16.9 3.1 8.0 100 9.80
UC - 0.5 9.6 18.5 5.0 9.2 100 11.30
D UC - 1 10.0 20.0 6.35 10.4 100 13.00
L A UC - 1.5 10.0 22.6 7.9 11.2 100 15.40
UC - 2 12.0 26.8 9.5 12.5 100 16.60
UC - 3 12.0 30.3 12.7 14.8 100 21.10
UC - 4 12.0 32.6 15.8 15.8 100 25.40
UC - 5 12.0 37.3 19.4 18.0 100 32.40
UC - 6 12.0 43.4 25.4 21.0 100 37.20

SELF ADHESIVE TIE MOUNT
MATERIAL
Nylon 66, 94V-2 UL Certified.
Designed to support light weight wire bundles when properly applied on any clean,
smooth, grease-free surface.
For heavy support, mounting hole is provided for screws.
W Dimension Mounting Packing
Part No Price
W (mm) L (mm) H (mm) T (mm) Hole (pcs/pkt)
L
HC - 100 12.5 12.5 3.2 3.2 - 100 25.40
HC - 101 21.8 21.8 4.0 4.8 - 100 25.40
HC - 100 HC - 101
HC - 102 28.6 28.6 5.3 5.5 5.0 100 36.40
H ABMM - A - D 19.1 19.1 4.6 4.3 - 500 178.00
ABM100 - A - D 25.4 25.4 5.1 10.7 10.7 500 258.00
T

HC - 102

SADDLE TYPE TIE MOUNT
MATERIAL
Nylon 66, 94V-2 UL Certified.
Designed to provide maximum stability to wire bundles.
To apply, simply fix mount with a screw and secure wire bundles with Nylon cable ties.
HC - 2 HC - 1 HC - 0 Dimension Packing
Part No Price
W (mm) L (mm) H (mm) T (mm) B (mm) (pcs/pkt)

B W W T HC - 0 9.5 19.6 5.0 5.2 3.7 100 13.90
HC - 1 10.0 15.0 7.0 5.1 3.5 100 15.10
T B HC - 2 16.0 23.0 9.8 9.0 6.3 100 20.90
L
L
H H
HC - 0 HC - 1 / HC -2

Atca Catalog | Safe Connect Together 1.08
