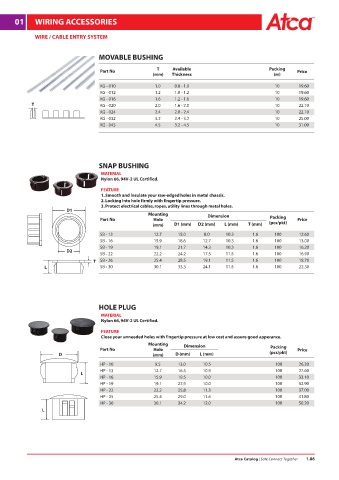

Page 13 - ATCA CATALOG 2019

01 WIRING ACCESSORIES

WIRE / CABLE ENTRY SYSTEM

MOVABLE BUSHING

T Available Packing
Part No Price
(mm) Thickness (m)
KG - 010 1.0 0.8 - 1.0 10 19.60
KG - 012 1.2 1.0 - 1.2 10 19.60
KG - 016 1.6 1.2 - 1.6 10 19.60
T KG - 020 2.0 1.6 - 2.0 10 22.10
KG - 024 2.4 2.0 - 2.4 10 22.10
KG - 032 3.2 2.4 - 3.2 10 25.00
KG - 045 4.5 3.2 - 4.5 10 31.00

SNAP BUSHING
MATERIAL
Nylon 66, 94V-2 UL Certified.
FEATURE
1. Smooth and insulate your raw-edged holes in metal chassis.
2. Locking into hole firmly with fingertip pressure.
3. Protect electrical cables, ropes, utility lines through metal holes.
D1
Mounting Dimension
Part No Hole Packing Price
(mm) D1 (mm) D2 (mm) L (mm) T (mm) (pcs/pkt)
SB - 13 12.7 15.0 8.0 10.3 1.6 100 12.60
SB - 16 15.9 18.6 12.7 10.3 1.6 100 13.00
SB - 19 19.1 21.7 14.3 10.3 1.6 100 16.20
D2
SB - 22 22.2 24.2 17.5 11.5 1.6 100 16.90
T SB - 26 25.4 28.5 19.1 11.5 1.6 100 18.70
L SB - 30 30.1 33.3 24.1 11.5 1.6 100 22.30

HOLE PLUG

MATERIAL
Nylon 66, 94V-2 UL Certified.
FEATURE
Close your unneeded holes with fingertip pressure at low cost and assure good apperance.
Mounting Dimension
Part No Hole Packing Price
D (mm) D (mm) L (mm) (pcs/pkt)
HP - 10 9.5 13.0 10.5 100 26.20
HP - 13 12.7 16.5 10.9 100 27.60
L
HP - 16 15.9 19.5 10.0 100 33.10
HP - 19 19.1 22.9 10.0 100 32.90
HP - 22 22.2 25.8 11.3 100 37.00
HP - 25 25.4 29.0 11.6 100 41.80
HP - 30 30.1 34.2 12.0 100 50.20
L
