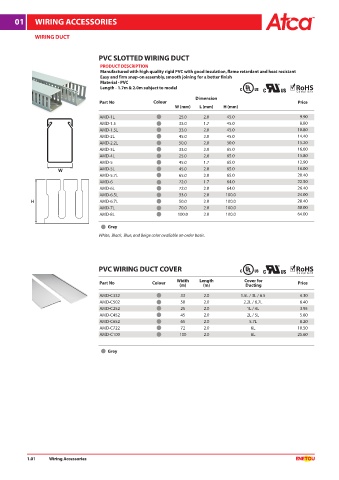

Page 8 - ATCA CATALOG 2019

01 WIRING ACCESSORIES

WIRING DUCT

PVC SLOTTED WIRING DUCT
PRODUCT DESCRIPTION
Manufactured with high quality rigid PVC with good insulation, flame retardant and heat resistant
Easy and firm snap-on assembly, smooth joining for a better finish
Material - PVC
Length - 1.7m & 2.0m subject to model
Dimension
Part No Colour Price
W (mm) L (mm) H (mm)
AMD-1L 25.0 2.0 45.0 9.90
AMD-1.5 33.0 1.7 45.0 8.80
AMD-1.5L 33.0 2.0 45.0 10.80
AMD-2L 45.0 2.0 45.0 14.40
AMD-2.2L 50.0 2.0 50.0 15.20
AMD-3L 33.0 2.0 65.0 16.00
AMD-4L 25.0 2.0 65.0 15.80
AMD-5 45.0 1.7 65.0 12.90
W AMD-5L 45.0 2.0 65.0 16.00
AMD-5.7L 65.0 2.0 65.0 20.40
AMD-6 72.0 1.7 64.0 22.50
AMD-6L 72.0 2.0 64.0 26.40
AMD-6.5L 33.0 2.0 100.0 24.00
H AMD-6.7L 50.0 2.0 100.0 28.40
AMD-7L 70.0 2.0 100.0 50.00
AMD-8L 100.0 2.0 100.0 64.00

Grey
White, Black, Blue, and Beige color available on order basis.

PVC WIRING DUCT COVER

Width Length Cover for
Part No Colour Price
(m) (m) Ducting
AMD-C332 33 2.0 1.5L / 3L / 6.5 4.30
AMD-C502 50 2.0 2.2L / 6.7L 6.40
AMD-C252 25 2.0 1L / 4L 3.95
AMD-C452 45 2.0 2L / 5L 5.80
AMD-C652 65 2.0 5.7L 8.20
AMD-C722 72 2.0 6L 10.50
AMD-C100 100 2.0 8L 25.60

Grey
