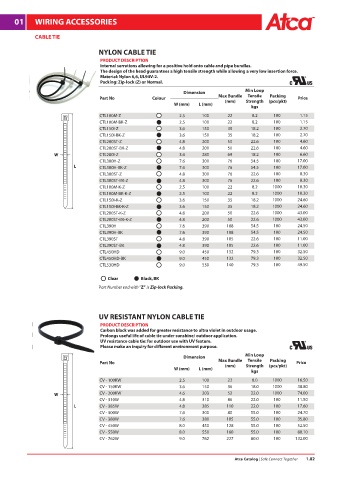

Page 9 - ATCA CATALOG 2019

0101 WIRING ACCESSORIESWIRING ACCESSORIES

CABLE TIE

NYLON CABLE TIE
PRODUCT DESCRIPTION
Internal serrations allowing for a positive hold onto cable and pipe bundles.
The design of the head guarantees a high tensile strength while allowing a very low insertion force.
Material: Nylon 6,6, UL94V-2.
Packing: Zip-lock (Z) or Normal.
Min Loop
Dimension
Packing
Tensile
Part No Colour Max Bundle Strength (pcs/pkt) Price
(mm)
W (mm) L (mm)
kgs
CTL100M-Z 2.5 100 22 8.2 100 1.15
CTL100M-BK-Z 2.5 100 22 8.2 100 1.15
CTL150I-Z 3.6 150 35 18.2 100 2.70
CTL150I-BK-Z 3.6 150 35 18.2 100 2.70
CTL200ST-Z 4.8 200 50 22.6 100 4.60
CTL200ST-BK-Z 4.8 200 50 22.6 100 4.60
W CTL280I-Z 3.6 280 69 18.2 100 6.60
CTL300H-Z 7.6 300 76 54.5 100 17.00
L CTL300H-BK-Z 7.6 300 76 54.5 100 17.00
CTL300ST-Z 4.8 300 76 22.6 100 8.30
CTL300ST-BK-Z 4.8 300 76 22.6 100 8.30
CTL100M-K-Z 2.5 100 22 8.2 1000 10.30
CTL100M-BK-K-Z 2.5 100 22 8.2 1000 10.30
CTL150I-K-Z 3.6 150 35 18.2 1000 24.60
CTL150I-BK-K-Z 3.6 150 35 18.2 1000 24.60
CTL200ST-K-Z 4.8 200 50 22.6 1000 43.00
CTL200ST-BK-K-Z 4.8 200 50 22.6 1000 43.00
CTL390H 7.6 390 108 54.5 100 24.50
CTL390H-BK 7.6 390 108 54.5 100 24.50
CTL390ST 4.8 390 105 22.6 100 11.00
CTL390ST-BK 4.8 390 105 22.6 100 11.00
CTL450HD 9.0 450 132 79.3 100 32.50
CTL450HD-BK 9.0 450 132 79.3 100 32.50
CTL530HD 9.0 530 140 79.3 100 49.50
Clear Black, BK
Part Number end with “Z” is Zip-lock Packing.

UV RESISTANT NYLON CABLE TIE
PRODUCT DESCRIPTION
Carbon black was added for greater resistance to ultra violet in outdoor usage.
Prolongs useful life of cable tie under sunshine/ outdoor application.
UV resistance cable tie: for outdoor use with UV feature.
Please make an inquiry for different environment purpose.
Min Loop
Dimension
Tensile
Packing
Part No Max Bundle Strength (pcs/pkt) Price
(mm)
W (mm) L (mm)
kgs
CV - 100KW 2.5 100 22 8.0 1000 16.50
CV - 150KW 3.6 150 36 18.0 1000 38.80
W CV - 200KW 4.6 203 52 22.0 1000 74.00
CV - 310W 4.8 310 86 22.0 100 11.50
L CV - 385W 4.8 385 110 22.0 100 17.60
CV - 300W 7.6 300 80 55.0 100 24.70
CV - 380W 7.6 380 105 55.0 100 35.80
CV - 450W 8.0 450 128 55.0 100 52.50
CV - 550W 8.0 550 160 55.0 100 80.10
CV - 762W 9.0 762 227 80.0 100 132.00

Atca Catalog | Safe Connect Together 1.02
