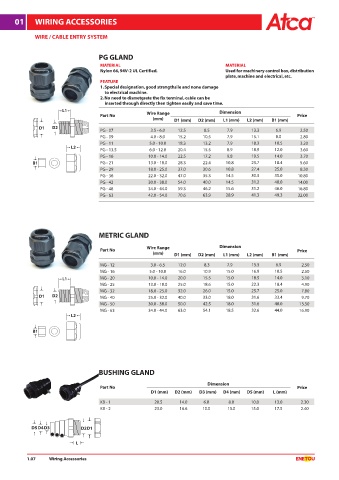

Page 14 - ATCA CATALOG 2019

01 WIRING ACCESSORIES

WIRE / CABLE ENTRY SYSTEM

PG GLAND
MATERIAL MATERIAL
Nylon 66, 94V-2 UL Certified. Used for machinery control box, distribution
plate, machine and electrical, etc.
FEATURE
1. Special designation, good strengthsile and none damage
to electrical machine.
2. No need to dismetgrate the fix terminal, cable can be
inserted through directly then tighten easily and save time.
L1 Wire Range Dimension
Part No Price
(mm) D1 (mm) D2 (mm) L1 (mm) L2 (mm) B1 (mm)
D1 D2
PG - 07 3.5 - 6.0 12.5 8.5 7.9 13.3 6.9 2.50
PG - 09 4.0 - 8.0 15.2 10.5 7.9 15.1 8.0 2.80
PG - 11 5.0 - 10.0 18.3 13.2 7.9 18.3 10.5 3.20
L2
PG - 13.5 6.0 - 12.0 20.4 15.5 8.9 18.9 12.0 3.60
PG - 16 10.0 - 14.0 22.5 17.2 9.8 19.5 14.0 3.70
B1 PG - 21 13.0 - 18.0 28.3 22.4 10.8 23.7 18.4 5.60
PG - 29 18.0 - 25.0 37.0 30.6 10.8 27.4 25.0 8.30
PG - 36 22.0 - 32.0 47.0 35.3 14.5 30.3 35.0 10.80
PG - 42 30.0 - 38.0 54.0 40.0 14.5 31.2 40.0 14.00
PG - 48 34.0 - 44.0 59.3 46.2 15.6 31.2 46.0 16.80
PG - 63 42.0 - 54.0 70.6 63.9 28.9 41.3 49.3 32.00

METRIC GLAND

Wire Range Dimension
Part No Price
(mm) D1 (mm) D2 (mm) L1 (mm) L2 (mm) B1 (mm)
MG - 12 3.0 - 6.5 12.0 8.3 7.9 13.3 6.9 2.50
MG - 16 5.0 - 10.0 16.0 10.9 15.0 16.9 10.5 2.50
L1 MG - 20 10.0 - 14.0 20.0 15.5 15.0 18.5 14.0 3.10
MG - 25 13.0 - 18.0 25.0 18.6 15.0 22.3 18.4 4.90
MG - 32 18.0 - 25.0 32.0 26.0 15.0 25.7 25.0 7.80
D1 D2 MG - 40 25.0 - 32.0 40.0 33.0 18.0 31.6 33.4 9.70
MG - 50 30.0 - 38.0 50.0 42.5 18.0 31.6 40.0 13.30
MG - 63 34.0 - 44.0 63.0 54.1 18.5 32.6 44.0 16.90
L2

B1

BUSHING GLAND

Dimension
Part No Price
D1 (mm) D2 (mm) D3 (mm) D4 (mm) D5 (mm) L (mm)
KB - 1 20.5 14.0 6.0 8.0 10.0 13.0 2.30
KB - 2 23.0 16.6 10.0 13.0 15.0 17.5 2.40

D5 D4 D3 D2 D1

L
