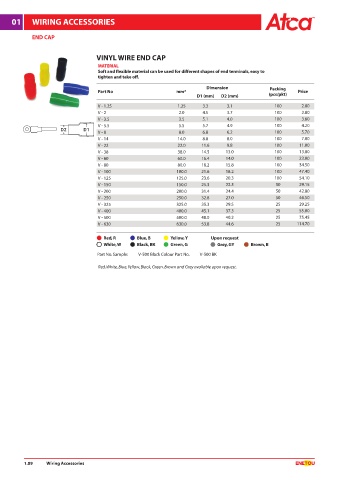

Page 16 - ATCA CATALOG 2019

01 WIRING ACCESSORIES

END CAP

VINYL WIRE END CAP
MATERIAL
Soft and flexible material can be used for different shapes of end terminals, easy to
tighten and take off.

Dimension Packing
Part No mm² Price
D1 (mm) D2 (mm) (pcs/pkt)
V - 1.25 1.25 3.3 3.1 100 2.80
V - 2 2.0 4.5 3.7 100 2.80
V - 3.5 3.5 5.1 4.0 100 3.60
V - 5.5 5.5 5.7 4.9 100 4.20
V - 8 8.0 6.8 6.2 100 5.70
V - 14 14.0 8.8 8.0 100 7.00
V - 22 22.0 11.6 9.8 100 11.00
V - 38 38.0 14.5 13.0 100 13.80
V - 60 60.0 16.4 14.0 100 23.00
V - 80 80.0 18.2 15.8 100 34.50
V - 100 100.0 21.6 18.2 100 47.40
V - 125 125.0 23.6 20.3 100 54.10
V - 150 150.0 25.3 22.3 50 29.15
V - 200 200.0 31.4 24.4 50 42.80
V - 250 250.0 32.8 27.0 50 46.50
V - 325 325.0 35.3 29.5 25 29.25
V - 400 400.0 45.1 37.3 25 55.00
V - 500 500.0 48.0 40.2 25 75.45
V - 630 630.0 53.8 44.6 25 114.70

Red, R Blue, B Yellow, Y Upon request
White, W Black, BK Green, G Grey, GY Brown, B
Part No. Sample: V-500 Black Colour Part No. V-500 BK

Red, White, Blue, Yellow, Black, Green. Brown and Grey available upon request.

1.09 Wiring Accessories
