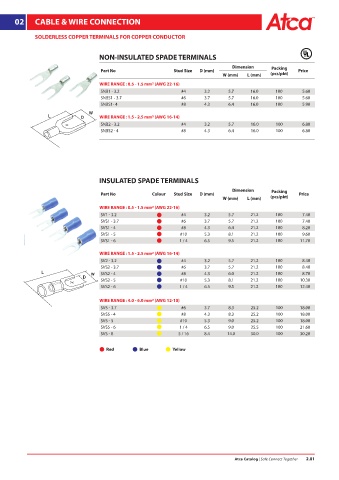

Page 17 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

SOLDERLESS COPPER TERMINALS FOR COPPER CONDUCTOR

NON-INSULATED SPADE TERMINALS
Dimension Packing
Part No Stud Size D (mm) Price
W (mm) L (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
SNB1 - 3.2 #4 3.2 5.7 16.0 100 5.60
SNBS1 - 3.7 #6 3.7 5.7 16.0 100 5.60
SNBS1- 4 #8 4.3 6.4 16.0 100 5.90

WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
SNB2 - 3.2 #4 3.2 5.7 16.0 100 6.80
SNBS2 - 4 #8 4.3 6.4 16.0 100 6.80

INSULATED SPADE TERMINALS
Dimension Packing
Part No Colour Stud Size D (mm) Price
W (mm) L (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
SV1 - 3.2 #4 3.2 5.7 21.2 100 7.40
SVS1 - 3.7 #6 3.7 5.7 21.2 100 7.40
SVS1 - 4 #8 4.3 6.4 21.2 100 8.20
SVS1 - 5 #10 5.3 8.1 21.2 100 9.60
SVS1 - 6 1 / 4 6.5 9.5 21.2 100 11.70

WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
SV2 - 3.2 #4 3.2 5.7 21.2 100 8.40
SVS2 - 3.7 #6 3.7 5.7 21.2 100 8.40
SVS2 - 4 #8 4.3 6.0 21.2 100 8.70
SVS2 - 5 #10 5.3 8.1 21.2 100 10.30
SVS2 - 6 1 / 4 6.5 9.5 21.2 100 12.40

WIRE RANGE : 4.0 - 6.0 mm² (AWG 12-10)
SV5 - 3.7 #6 3.7 8.3 25.2 100 18.00
SVS5 - 4 #8 4.3 8.3 25.2 100 18.00
SV5 - 5 #10 5.3 9.0 25.2 100 18.00
SVS5 - 6 1 / 4 6.5 9.0 25.5 100 21.60
SV5 - 8 5 / 16 8.4 14.0 30.0 100 30.20

Red Blue Yellow

Atca Catalog | Safe Connect Together 2.01
