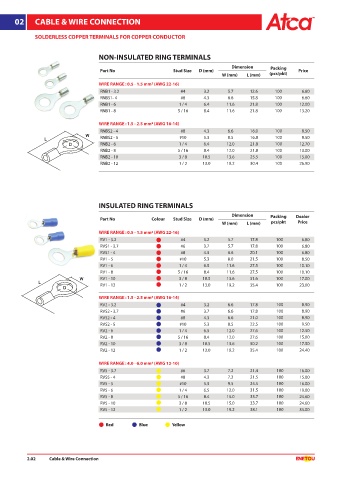

Page 18 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

SOLDERLESS COPPER TERMINALS FOR COPPER CONDUCTOR

NON-INSULATED RING TERMINALS
Dimension Packing
Part No Stud Size D (mm) Price
W (mm) L (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
RNB1 - 3.2 #4 3.2 5.7 12.6 100 6.60
RNBS1- 4 #8 4.3 6.6 15.8 100 6.60
RNB1 - 6 1 / 4 6.4 11.6 21.8 100 12.00
RNB1 - 8 5 / 16 8.4 11.6 21.8 100 13.20

WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
RNBS2 - 4 #8 4.3 6.6 16.0 100 8.50
RNBS2 - 5 #10 5.3 8.5 16.8 100 8.50
RNB2 - 6 1 / 4 6.4 12.0 21.8 100 12.70
RNB2 - 8 5 / 16 8.4 12.0 21.8 100 13.00
RNB2 - 10 3 / 8 10.5 13.6 25.5 100 15.00
RNB2 - 12 1 / 2 13.0 19.2 30.4 100 26.90

INSULATED RING TERMINALS

Dimension Packing Dealer
Part No Colour Stud Size D (mm)
W (mm) L (mm) pcs/pkt Price
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
RV1 - 3.2 #4 3.2 5.7 17.8 100 6.80
RVS1 - 3.7 #6 3.7 5.7 17.8 100 6.80
RVS1 - 4 #8 4.3 6.6 20.1 100 6.80
RV1 - 5 #10 5.3 8.0 21.5 100 8.50
RV1 - 6 1 / 4 6.5 11.6 27.5 100 10.10
RV1 - 8 5 / 16 8.4 11.6 27.5 100 10.10
RV1 - 10 3 / 8 10.5 13.6 31.6 100 17.00
RV1 - 12 1 / 2 13.0 19.2 35.4 100 23.00

WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
RV2 - 3.2 #4 3.2 6.6 17.8 100 8.90
RVS2 - 3.7 #6 3.7 6.6 17.8 100 8.90
RVS2 - 4 #8 4.3 6.6 21.0 100 8.90
RVS2 - 5 #10 5.3 8.5 22.5 100 9.50
RV2 - 6 1 / 4 6.5 12.0 27.6 100 12.50
RV2 - 8 5 / 16 8.4 12.0 27.6 100 15.00
RV2 - 10 3 / 8 10.5 13.6 30.2 100 17.50
RV2 - 12 1 / 2 13.0 19.2 35.4 100 24.40

WIRE RANGE : 4.0 - 6.0 mm² (AWG 12-10)
RV5 - 3.7 #6 3.7 7.2 21.4 100 16.00
RVS5 - 4 #8 4.3 7.2 21.5 100 15.00
RV5 - 5 #10 5.3 9.5 25.5 100 16.00
RV5 - 6 1 / 4 6.5 12.0 31.5 100 19.00
RV5 - 8 5 / 16 8.4 15.0 33.7 100 24.60
RV5 - 10 3 / 8 10.5 15.0 33.7 100 24.60
RV5 - 12 1 / 2 13.0 19.2 38.1 100 35.00

Red Blue Yellow

2.02 Cable & Wire Connection
