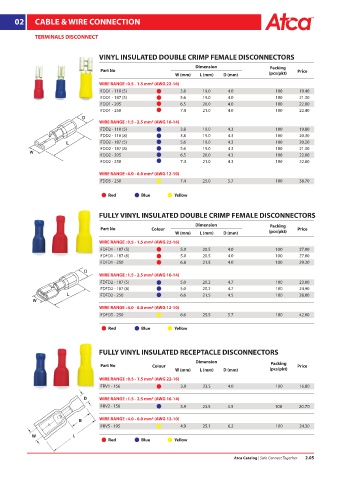

Page 21 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

TERMINALS DISCONNECT

VINYL INSULATED DOUBLE CRIMP FEMALE DISCONNECTORS
Dimension Packing
Part No Price
W (mm) L (mm) D (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
FDD1 - 110 (5) 3.8 19.0 4.0 100 19.40
FDD1 - 187 (5) 5.6 19.0 4.0 100 21.30
FDD1 - 205 6.5 20.0 4.0 100 22.00
FDD1 - 250 7.4 21.0 4.0 100 22.40
WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
FDD2 - 110 (5) 3.8 19.0 4.3 100 19.80
FDD2 - 110 (8) 3.8 19.0 4.3 100 20.30
FDD2 - 187 (5) 5.6 19.0 4.3 100 20.20
FDD2 - 187 (8) 5.6 19.0 4.3 100 21.30
FDD2 - 205 6.5 20.0 4.3 100 22.00
FDD2 - 250 7.4 21.0 4.3 100 22.80

WIRE RANGE : 4.0 - 6.0 mm² (AWG 12-10)
FDD5 - 250 7.4 25.0 5.7 100 38.70

Red Blue Yellow

FULLY VINYL INSULATED DOUBLE CRIMP FEMALE DISCONNECTORS

Dimension Packing
Part No Colour Price
W (mm) L (mm) D (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
FDFD1 - 187 (5) 5.0 20.5 4.0 100 27.00
FDFD1 - 187 (8) 5.0 20.5 4.0 100 27.00
FDFD1 - 250 6.6 21.5 4.0 100 29.30

WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
FDFD2 - 187 (5) 5.0 20.2 4.7 100 23.00
FDFD2 - 187 (8) 5.0 20.2 4.7 100 24.90
FDFD2 - 250 6.6 21.5 4.5 100 28.00

WIRE RANGE : 4.0 - 6.0 mm² (AWG 12-10)
FDFD5 - 250 6.6 25.5 5.7 100 42.00

Red Blue Yellow

FULLY VINYL INSULATED RECEPTACLE DISCONNECTORS

Dimension Packing
Part No Colour Price
W (mm) L (mm) D (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
FRV1 - 156 3.9 23.5 4.0 100 16.80

D WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
FRV2 - 156 3.9 23.5 4.5 100 20.70

B WIRE RANGE : 4.0 - 6.0 mm² (AWG 12-10)
FRV5 - 195 4.9 25.1 6.2 100 24.30
W L
Red Blue Yellow

Atca Catalog | Safe Connect Together 2.05
