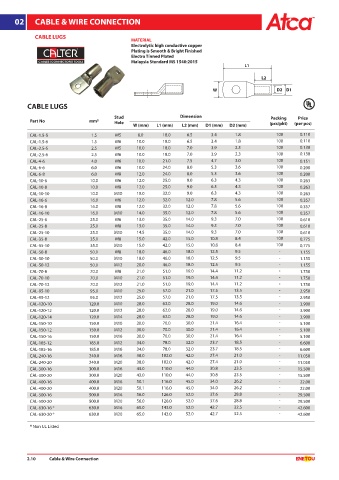

Page 26 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

CABLE LUGS
MATERIAL
Electrolytic high conductive copper
Plating is Smooth & Bright Finished
Electro Tinned Plated
Malaysia Standard MS 1540:2015
L1
L2

W D2 D1

CABLE LUGS

Stud Dimension Packing Price
Part No mm² Hole
W (mm) L1 (mm) L2 (mm) D1 (mm) D2 (mm) (pcs/pkt) (per pcs)
CAL-1.5-5 1.5 M5 8.0 18.0 6.5 3.4 1.8 100 0.110
CAL-1.5-6 1.5 M6 10.0 18.0 6.5 3.4 1.8 100 0.110
CAL-2.5-5 2.5 M5 10.0 18.0 7.0 3.9 2.3 100 0.138
CAL-2.5-6 2.5 M6 10.0 18.0 7.0 3.9 2.3 100 0.138
CAL-4-6 4.0 M6 10.0 21.0 7.5 4.7 3.0 100 0.151
CAL-6-6 6.0 M6 10.0 24.0 8.0 5.3 3.6 100 0.200
CAL-6-8 6.0 M8 12.0 24.0 8.0 5.3 3.6 100 0.200
CAL-10-6 10.0 M6 12.0 25.0 9.0 6.3 4.3 100 0.263
CAL-10-8 10.0 M8 12.0 25.0 9.0 6.3 4.3 100 0.263
CAL-10-10 10.0 M10 19.0 32.0 9.0 6.3 4.3 100 0.263
CAL-16-6 16.0 M6 12.0 32.0 12.0 7.8 5.6 100 0.357
CAL-16-8 16.0 M8 12.0 32.0 12.0 7.8 5.6 100 0.357
CAL-16-10 16.0 M10 14.0 35.0 12.0 7.8 5.6 100 0.357
CAL-25-6 25.0 M6 13.0 35.0 14.0 9.3 7.0 100 0.610
CAL-25-8 25.0 M8 13.0 35.0 14.0 9.3 7.0 100 0.610
CAL-25-10 25.0 M10 14.5 35.0 14.0 9.3 7.0 100 0.610
CAL-35-8 35.0 M8 15.0 42.0 15.0 10.8 8.4 100 0.775
CAL-35-10 35.0 M10 15.0 42.0 15.0 10.8 8.4 100 0.775
CAL-50-8 50.0 M8 18.0 46.0 18.0 12.5 9.5 - 1.155
CAL-50-10 50.0 M10 18.0 46.0 18.0 12.5 9.5 - 1.155
CAL-50-12 50.0 M12 20.0 46.0 18.0 12.5 9.5 - 1.155
CAL-70-8 70.0 M8 21.0 51.0 19.0 14.4 11.2 - 1.750
CAL-70-10 70.0 M10 21.0 51.0 19.0 14.4 11.2 - 1.750
CAL-70-12 70.0 M12 21.0 51.0 19.0 14.4 11.2 - 1.750
CAL-95-10 95.0 M10 25.0 57.0 21.0 17.5 13.5 - 2.950
CAL-95-12 95.0 M12 25.0 57.0 21.0 17.5 13.5 - 2.950
CAL-120-10 120.0 M10 28.0 62.0 28.0 19.0 14.6 - 3.900
CAL-120-12 120.0 M12 28.0 62.0 28.0 19.0 14.6 - 3.900
CAL-120-14 120.0 M14 28.0 62.0 28.0 19.0 14.6 - 3.900
CAL-150-10 150.0 M10 30.0 70.0 30.0 21.4 16.4 - 5.100
CAL-150-12 150.0 M12 30.0 70.0 30.0 21.4 16.4 - 5.100
CAL-150-16 150.0 M16 30.0 70.0 30.0 21.4 16.4 - 5.100
CAL-185-12 185.0 M12 34.0 78.0 32.0 23.7 18.5 - 6.600
CAL-185-16 185.0 M16 34.0 78.0 32.0 23.7 18.5 - 6.600
CAL-240-16 240.0 M16 38.0 102.0 42.0 27.4 21.0 - 11.050
CAL-240-20 240.0 M20 38.0 102.0 42.0 27.4 21.0 - 11.050
CAL-300-16 300.0 M16 43.0 110.0 44.0 30.8 23.5 - 15.500
CAL-300-20 300.0 M20 43.0 110.0 44.0 30.8 23.5 - 15.500
CAL-400-16 400.0 M16 50.1 116.0 45.0 34.0 26.2 - 22.00
CAL-400-20 400.0 M20 50.1 116.0 45.0 34.0 26.2 - 22.00
CAL-500-16 500.0 M16 56.0 126.0 52.0 37.6 28.8 - 29.500
CAL-500-20 500.0 M20 56.0 126.0 52.0 37.6 28.8 - 29.500
CAL-630-16 * 630.0 M16 65.0 143.0 52.0 42.7 32.5 - 42.600
CAL-630-20 * 630.0 M20 65.0 143.0 52.0 42.7 32.5 - 42.600

* Non UL Listed
