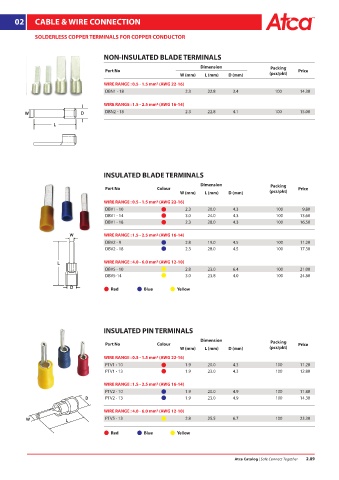

Page 25 - ATCA CATALOG 2019
P. 25
02 CABLE & WIRE CONNECTION
SOLDERLESS COPPER TERMINALS FOR COPPER CONDUCTOR
NON-INSULATED BLADE TERMINALS
Dimension Packing
Part No Price
W (mm) L (mm) D (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
DBN1 - 18 2.3 22.8 3.4 100 14.30
WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
DBN2 - 18 2.3 22.8 4.1 100 15.00
INSULATED BLADE TERMINALS
Dimension Packing
Part No Colour Price
W (mm) L (mm) D (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
DBV1 - 10 2.3 20.0 4.3 100 9.80
DBV1 - 14 3.0 24.0 4.3 100 13.60
DBV1 - 18 2.3 28.0 4.3 100 16.50
WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
DBV2 - 9 2.8 19.0 4.5 100 11.20
DBV2 - 18 2.3 28.0 4.5 100 17.30
WIRE RANGE : 4.0 - 6.0 mm² (AWG 12-10)
DBV5 - 10 2.8 23.0 6.4 100 21.00
DBV5-14 3.0 23.8 4.0 100 24.80
Red Blue Yellow
INSULATED PIN TERMINALS
Dimension Packing
Part No Colour Price
W (mm) L (mm) D (mm) (pcs/pkt)
WIRE RANGE : 0.5 - 1.5 mm² (AWG 22-16)
PTV1 - 10 1.9 20.0 4.3 100 11.20
PTV1 - 13 1.9 23.0 4.3 100 12.80
WIRE RANGE : 1.5 - 2.5 mm² (AWG 16-14)
PTV2 - 10 1.9 20.0 4.9 100 11.80
PTV2 - 13 1.9 23.0 4.9 100 14.30
WIRE RANGE : 4.0 - 6.0 mm² (AWG 12-10)
PTV5 - 13 2.8 25.5 6.7 100 23.30
Red Blue Yellow
Atca Catalog | Safe Connect Together 2.09
