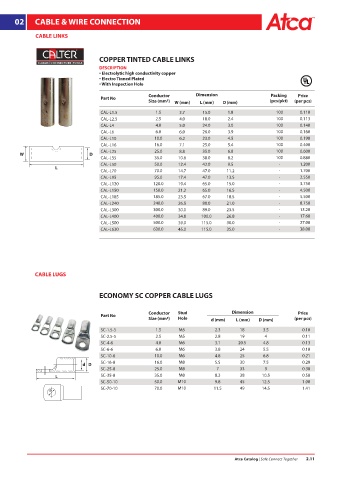

Page 27 - ATCA CATALOG 2019

02 CABLE & WIRE CONNECTION

CABLE LINKS

COPPER TINTED CABLE LINKS
DESCRIPTION
• Electrolytic high conductivity copper
• Electro Tinned Plated
• With Inspection Hole
Conductor Dimension Packing Price
Part No
Size (mm²) W (mm) L (mm) D (mm) (pcs/pkt) (per pcs)
CAL-L1.5 1.5 3.7 15.0 1.8 100 0.110
CAL-L2.5 2.5 4.0 18.0 2.4 100 0.113
CAL-L4 4.0 5.0 24.0 3.0 100 0.140
CAL-L6 6.0 6.0 26.0 3.9 100 0.160
CAL-L10 10.0 6.2 23.0 4.5 100 0.190
CAL-L16 16.0 7.1 25.0 5.4 100 0.400
CAL-L25 25.0 8.8 35.0 6.8 100 0.600
W D
CAL-L35 35.0 10.6 38.0 8.2 100 0.880
CAL-L50 50.0 12.4 42.0 9.5 - 1.200
L
CAL-L70 70.0 14.7 47.0 11.2 - 1.700
CAL-L95 95.0 17.4 47.0 13.5 - 2.550
CAL-L120 120.0 19.4 65.0 15.0 - 3.750
CAL-L150 150.0 21.2 65.0 16.5 - 4.500
CAL-L185 185.0 23.5 67.0 18.5 - 5.500
CAL-L240 240.0 26.5 80.0 21.0 - 8.750
CAL-L300 300.0 30.0 89.0 23.5 - 13.20
CAL-L400 400.0 34.8 100.0 26.8 - 17.60
CAL-L500 500.0 39.0 115.0 30.0 - 27.00
CAL-L630 630.0 45.0 115.0 35.0 - 38.00

CABLE LUGS

ECONOMY SC COPPER CABLE LUGS

Conductor Stud Dimension Price
Part No
Size (mm²) Hole d (mm) L (mm) D (mm) (per pcs)
SC-1.5-5 1.5 M5 2.3 18 3.5 0.10
SC-2.5-5 2.5 M5 2.8 19 4 0.11
SC-4-6 4.0 M6 3.1 20.5 4.8 0.13
SC-6-6 6.0 M6 3.8 24 5.5 0.18
SC-10-6 10.0 M6 4.8 25 6.8 0.21
SC-16-8 16.0 M8 5.5 30 7.5 0.29
d D
SC-25-8 25.0 M8 7 33 9 0.38
L SC-35-8 35.0 M8 8.3 38 10.5 0.58
SC-50-10 50.0 M10 9.8 45 12.5 1.00
SC-70-10 70.0 M10 11.5 49 14.5 1.41
